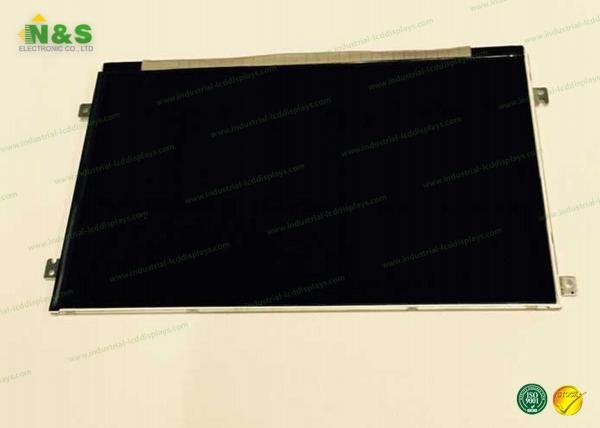

Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline
Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline
Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline
Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline
Specifications
Brand Name :
LG Display
Model Number :
LD070WS2-SL07
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Display Mode :
IPS, Normally Black, Transmissive
Active Area :
153.6×90 mm
Outline :
162.8×102.9 mm
Surface :
Hard coating (3H)
Response Time :
50 (Max.)(Tr+Td)
Viewing Angle :
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Lamp Type :
5S4P WLED
Description

Hard coating Surface 7.0 inch lg lcd monitor 162.8×102.9 mm Outline

LG Display LD070WS2-SL07 General Features

Panel Brand : LG Display
Panel Model : LD070WS2-SL07
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 153.6×90 mm
Outline : 162.8×102.9 mm
Surface : Hard coating (3H)
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC)
Response Time : 50 (Max.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 5S4P WLED
Signal Interface : LVDS (1 ch, 8-bit) + SPI , 30 pins
Input Voltage : 3.3V (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LB060S01-FD01 LG Display 6.0" 800×600
LD470DUJ-SFE2 LG Display 47" 1920×1080
LC650EQK-FGK1 LG Display 65" 3840×2160
LH470M01-SH01 LG Display 4.7" 540×960
LH250Q01-TH03 LG Display 2.5" 320×240
LH320H02-SH03 LG Display 3.2" 320×480

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

LG Display LD070WS2-SL07 Optical Features

Display Mode : IPS, Normally Black, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Response Time : 50 (Max.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.310; Wy:0.340
White Variation : 1.25/1.43 (Typ./Max.)(9 points)
