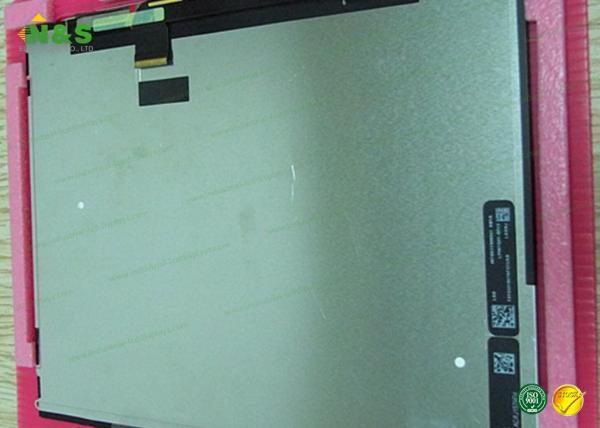

LP097QX1-SPC1 9.7 inch lg lcd panel replacement 208.88×167.12 mm Outline
LP097QX1-SPC1 9.7 inch lg lcd panel replacement 208.88×167.12 mm Outline
Specifications
Brand Name :
LG LCD Panel
Model Number :
LP097QX1-SPC1
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
2048(RGB)×1536 , QXGA
Display Mode :
IPS, Normally Black, Transmissive
Active Area :
196.608×147.456 mm
Response Time :
30 (Typ.)(Tr+Td)
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Lamp Type :
WLED
Input Voltage :
3.3V (Typ.)
Description

LP097QX1-SPC1 9.7 inch lg lcd panel replacement 208.88×167.12 mm Outline

Special Features

Panel Brand : LG Display
Panel Model : LP097QX1-SPC1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 9.7 inch
Resolution : 2048(RGB)×1536 , QXGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 196.608×147.456 mm
Outline : 208.88×167.12 mm
Surface : Glare (Haze 0%), Hard coating (3H), Antireflection
Brightness : 440 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : eDP (4 Lanes) , 51 pins
Input Voltage : 3.3V (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LB060S01-FD01 LG Display 6.0" 800×600
LD470DUJ-SFE2 LG Display 47" 1920×1080
LC650EQK-FGK1 LG Display 65" 3840×2160
LH470M01-SH01 LG Display 4.7" 540×960
LH250Q01-TH03 LG Display 2.5" 320×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience inindustrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

LG Display LP097QX1-SPC1 Optical Features

Display Mode : IPS, Normally Black, Transmissive
Brightness : 440 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.303; Wy:0.314
White Variation : 1.40/1.60 (Typ./Max.)(13 points)

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals
