Long Porduct Life 4.3'' Samsung LCD Monitor Edge Light Type With Anti - Glare LMS430HF02
Long Porduct Life 4.3'' Samsung LCD Monitor Edge Light Type With Anti - Glare LMS430HF02
Specifications
Brand Name :
Samsung
Model Number :
LMS430HF02
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
10
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability :
1000
Delivery Time :
1-2days
Packaging Details :
Standard packing
Product number :
LMS430HF02
Brand :
Samsung
Size Of Panel :
4.3INCH
Resolution :
480×272
Brightness :
500cd/m2
C/R :
900:1
Backlight :
WLED
Description

4.3inch 480×272 resolution 500cd/m2 for LMS430HF02 Samsung LCD Panel

Company Strength:

  1. ISO9001 certificated, Factory Direct Supplied.
  2. Competitive Price and Short Lead-time.
  3. Professional Team with Rich Experiences in Design / Mfg / Quality Control
  4. Small MOQ Support & Fast Response to Customers.
  5. Long Porduct Life Time.

SAMSUNG LMS430HF02 Optical Features and Backlight System:

Panel Brand : SAMSUNG
Panel Model : LMS430HF02
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 4.3 inch
Resolution : 480×272(RGB) , WQVGA
Display Mode : VA, Normally Black, TMR
Active Area : 95.04×53.856 mm
Outline : 105.5×67.2 mm
Surface :
Brightness : 500 cd/m² (Typ.)
Contrast Ratio : 900 : 1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 17/15 (Typ.)(Tr/Td)
Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 10S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 45 pins
Input Voltage : 2.5/3.3V (Typ.)(VDD)
Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 10S1P
Lamp Shape : 1 string
Lamp Voltage : 33V (Typ.)
Lamp Current : 22/24mA (Typ./Max.)
Lamps Power Consumption : 730mW (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

Application:

  • Industrial display application
  • handheld devices

Our Advantages for LMS430HF02 :

Vertical Frequency : 60Hz
Reverse Scan : No
Time Controller (T-CON) : Embedded T-CON

LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 countries, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

N&S will be your powerful partner on LCDs in China. Here we are to quote your need.

Applications:

Mainly Used in Closed-Circuit Surveillance Systems

Car Video, PC Operating Systems

Vehicle Navigation Systems Supporting Display

Can Also be Applied for Industrial Automation

Medical Machine Equipments

Electric Power

Petrification

Monitor

Navigation

POS, ATM and Instrumentation Display Systems

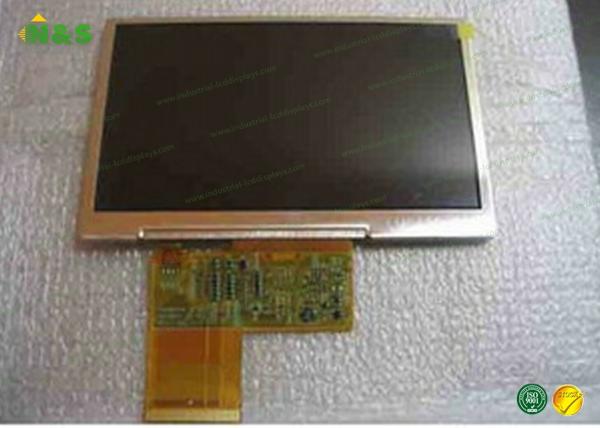

Picture Show for LMS430HF02 LCD Display Panels:

Long Porduct Life 4.3'' Samsung LCD Monitor Edge Light Type With Anti - Glare LMS430HF02
