Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial
Specifications
Brand Name :
Samsung
Model Number :
LTV350QV-F04
Certification :
ISO9001
Place of Origin :
Korea, Taiwan
MOQ :
1 Piece
Delivery Time :
2-3 Working Days After Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Brightness :
250 cd/m2 (Typ.)
Display Colors :
16.7M (8-bit)
Contrast Ratio :
300：1 （Typ. )
Frequency :
60Hz
Lamp Type :
6S1P ELED
Signal Interface :
Parallel RGB(1 ch, 8-bit) + SPI, 54 pins
Resolution :
320 (RGB) * 240, QVGA
Active Area :
70.08*52.56 mm
Operating Temp. :
-20 ~ 60 Degree
Storage Temp. :
-30 ~ 70 Degree
Description

3.5 Inch TFT LCD Screen Samsung LTV350QV-F04 For Industrial & Commercial Use

Description for Samsung LTV350QV-F04 TFT LCD Screen:

Quick Details:

1. Model: LTV350QV-F04

2. Size: 3.5 inch

3. View angle: R/L/U/D 60/60/50/55(Typ.)
4. 300:1 contrast ratio
5. Brightness 350nit
6. 320(RGB) x 240 resolution
7. Dimensions: 76.9 x 63.9 x 3.35 (mm)
8. Panel uses: Industrial Use

9. Parrallel RGB( 1ch, 8-bit) + SPI, 54 pins Signal Interface

10. Backlight CCFL

11. Input voltage: 3.3 / 4.9 / 18.0 / -10.0V ( Typ.)

Specifications Samsung LTV350QV-F04 TFT LCD Screen:

Module number LTV350QV-F04
Resolution 320(RGB) x 240
Pixel Pitch 0.073x 0.219 (mm)
Active Area 70.08 x 52.56 (mm)
View angle R/L/U/D 60/60/50/55 (Typ.)
Mode TN
LCD Surface Anti-glare,3H
Number of Colors 16.7M
Electrical Interface RGB/CCIR656/601
Brightness 350 cd/m2
Contrast ratio 300:1
Outline dimension 76.9 x 63.9 (mm)
Gross weight 32/37g (Typ. / Max.)
Backlight CCFL
Supply Voltage (V) 3.3V
Response time 25(ms)
Operate temperature -20-60 (°C)
Storage temperature -30-70 (°C)
Package Samsung Original Package

Notice:

I. The LCD display panel is suitable for the Industry & Instrument & Equipment.

II. Display & Panel: imported from Japan & Korea and so on. Level A LCD Panel. stable quality & better performance.

III. Main Board & Controller: the imported chip, strong technology support, special design, guarantee the quality & performance are beyond those from many competitors in this industry.

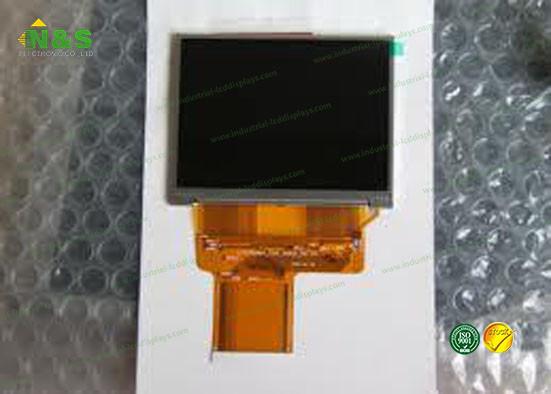

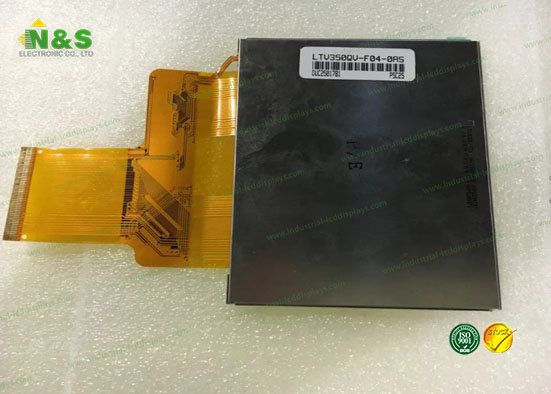

Detail Pictures for Samsung LTV350QV-F04 TFT LCD Screen:

Original 3.5 Inch Samsung LCD Panel LTV350QV-F04 For Industrial / Commercial

Samsung LCD Display, Samsung LCD Screen Panels.
