2.7 Inch NEC Professional Displays NL2432HC17-09B , High Resolution LCD Screen Display Panel
2.7 Inch NEC Professional Displays NL2432HC17-09B , High Resolution LCD Screen Display Panel
Specifications
Brand Name :
NEC
Model Number :
NL2432HC17-09B
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
NL2432HC17-09B Compatible model
Panel Size :
2.7 inch
Panel Type :
a-Si TFT-LCD , Panel
Display Mode :
TN
Contrast Ratio :
150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
Pixel Density :
148 PPI
Description

2.7 Inch NEC Professional Displays NL2432HC17-09B , High Resolution LCD Screen Display Panel

Descriptions for NEC NL2432HC17-09B:

Panel Size : 2.7 inch
Dot Resolution : 240(RGB)×320 (QVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 148 PPI
Aspect Ratio : 3:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.057×0.171 mm (H×V)
Pixel Pitch : 0.171×0.171 mm (H×V)
Active Area : 41.04×54.72 mm (H×V)
Outline Dimension : 50.54×68.62 mm (H×V)
Landscape or Portrait : Portrait type

We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.

Why Choose N&S?

1) Enough industrail experience and involved main markets all over the world.
2) Dedicated and professional sales team will offer you 24 hours online and immediate service.
3) Precise and advanced equipments.
4) High quality and sensitivity.
5) Many kinds of products with all size.


What can we do for you:

Our LCD Panel inventory lines mostly covered small size from

1.5",2.0",2.2",2.5",3.0",3.5",4.0",4.2",4.3",4.7",5.0",5.5",5.7",6.0",6.4",7.0",8.0",10.1",10.4",12.1" etc.

What is the lead time of the products?

Samples in stock will be sent within 3 days after payment.


Payment methods?

T/T and Western union etc. The details of our payment terms is showing above.


How long is the warranty period?

Usually 1 Year without damaged by people actions. It depends on different products.

What is the products application?

Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.

NEC NL2432HC17-09B Backlight System :

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 4S1P
Lamp Shape : 1 string
Lamp Voltage : 12.8/14.0V (Typ./Max.)
Lamp Current : 20/22mA (Typ./Max.)
Lamps Power Consumption : 256mW (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

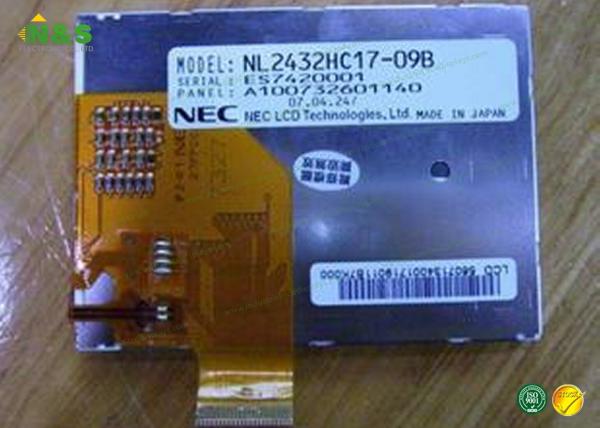

Picture ahout NEC NL2432HC17-09B :

2.7 Inch NEC Professional Displays NL2432HC17-09B , High Resolution LCD Screen Display Panel
