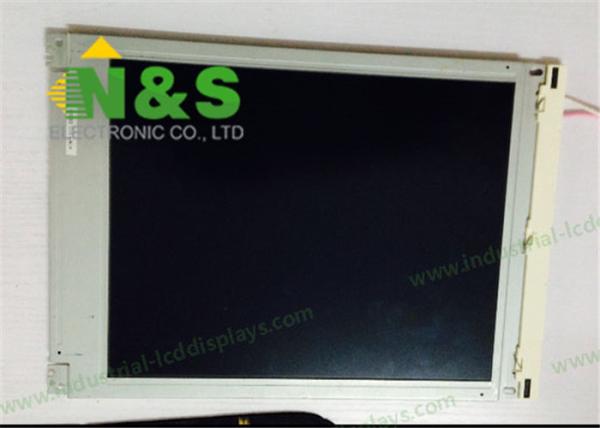

Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance
Specifications
Brand Name :
NEC
Model Number :
NL6448BC26-01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
NL6448BC26-01
Panel Type :
a-Si TFT-LCD , Panel
Vertical Frequency :
60Hz
Form Factor :
Flat Rectangle Display
Reverse Scan :
Yes (180°)
Total Power Consumption :
4.6W (Typ.)
Description

8.4 Inch NL6448BC26-01 with Screen a-Si High Brightness NEC LCD Panel

Detailed Product Description:

<

Panel Model : NL6448BC26-01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.4 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 170.88×128.16 mm
Outline : 200×152×12.7 mm
Surface : Antiglare, Hard coating (2H)
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 40%
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 55/55/40/70 (Typ.)(CR≥10) (L/R/U/D)

Technical Specifications for NEC NL6448BC26-01 LCD Panel:

<

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 2 pcs
Lamp Shape : Straight
Lamp Replaceable : Replaceable
Lamp RFU Model : 84LHS01
Lamp Voltage : 410V (Typ.)
Lamp Current : 3.0/5.0/5.5mA (Min./Typ./Max.)
Lamp Operating Frequency : 50/54/58KHz (Min./Typ./Max.)
Lamp Startup Voltage : 700/900V (Min.)(Ta=+25/0℃)
Interface Type : Connector

Packaging & Delivery

1. Response Time : 10/25 (Typ.)(Tr/Td)
2. Viewing Angle : 55/55/40/70 (Typ.)(CR≥10) (L/R/U/D)
3. Lamp Type : 2 pcs CCFL Without Driver
4. Signal Interface : CMOS (1 ch, 6-bit) , 31 pins
5. Input Voltage : 3.3/5.0V (Typ.)(VCC)

6. File Number : DOD-PD-0188
7. Language : English
8. Version : 8th edition

Wide Slim 8.4 Inch NEC Industrial Display NL6448BC26-01 With High Brightness / Luminance

Our company advantage in the TFT LCD Display Panel area:

As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.We work closely with more than 540 enterprises in the world, including large OEM factories,franchised distributors and well-known independent distributors in LCD industry.
