Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21
Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21
Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21
Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21
Specifications
Brand Name :
SHARP
Model Number :
LQ104V1DG21
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LQ104V1DG21 Compatible model
Panel Size :
10.4 inch
Display Colors :
262K (6-bit)
Panel Type :
a-Si TFT-LCD , Panel
Display Modes :
TN, Normally White, Transmissive
Frequency :
60Hz
Description

10.4 inch Flat Rectangle Display LQ104V1DG21 262K SHARP LCD Display Panel

Technical parameters for SHARP LQ104V1DG21:

<

Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.110 0.330 mm (H V)
Pixel Pitch : 0.330 0.330 mm (H V)
Weight : 700g (Max.)
Surface : Antiglare, Hard coating (3H), Antireflection
Active Area : 211.2 158.4 mm (H V)
Bezel Area : 214.6 162.4 mm (H V)
Outline Dimension : 265 195 mm (H V)
Outline Depth : 11.5 (Max.) mm
Holes & Brackets : Face mounting holes
Landscape or Portrait : Landscape type
Touch Panel : Without

The LQ104V1DG21 Series Sunlight Readable LCD monitors are designed for use in direct bright sunlight, or in other high ambient-light conditions. They utilize state-of-the-art LED backlights to produce over 1,000 nits of brightness (vs. 250-300 nits for standard monitors). This results in amazingly bright, crystal-clear images, even with direct, bright sunlight on the face of the screen.

Our Advantages for LCD panel:

With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in medical,industrial control,handheld device,Smartwatch, automotive,smart home and other fields.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

Descriptions for SHARP LQ104V1DG21 :

<

<

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 20/40 (Typ.)(Tr/Td)
Viewing Angle : 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.45 (Max.)(5 points)

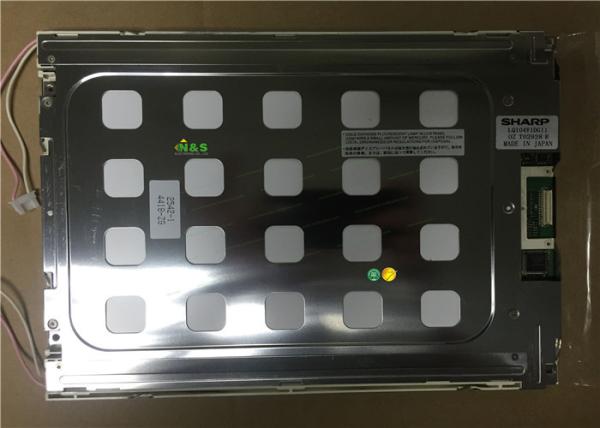

Details Pictures for SHARP LQ104V1DG21:

Full Colour Sharp LCD Module , 700g 10.4 Inch LCD Wall Screen LQ104V1DG21
