Normally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness Warranty
Normally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness Warranty
Normally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness Warranty
Normally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness Warranty
Specifications
Brand Name :
SHARP
Model Number :
LQ035Q7DH06
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
200 Piece Per Day
Delivery Time :
2-3 workings for order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model NO :
LQ035Q7DH06
Another Model NO :
LQ035Q7DH05
Display Colors :
262K (6-bit)
Lamp Type :
6S1P WLED
Viewing Angle :
40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
Brightness :
225 cd/m² (Typ.)
Description

LQ035Q7DH06 , 3.5 inch sharp lcd panel in large stock Sharp LCD Panel

Product Descriptions:

<

Panel Brand : SHARP
Panel Model : LQ035Q7DH06
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.5 inch
Resolution : 240(RGB)×320 , QVGA
Display Mode : TN, Normally White, Transflective
Active Area : 53.64×71.52 mm
Outline : 65×86.2×4.2 mm
Surface : Hard coating (2H)
Brightness : 225 cd/m² (Typ.)
Contrast Ratio : 80:1 (Typ.)(Transmissive) 3:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit)
Response Time : 30/50 (Typ.)(Tr/Td)
Viewing Angle : 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D)
Frequency : 60Hz

Features For LQ035Q7DH06 TFT LCD Module:

1. Signal Category : TTL
2. Signal Class : Parallel RGB (1 ch, 6-bit)
3. Input Voltage for Panel : 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
4. Input Current for Panel : 3.0/1.5/0.05/-0.05mA (Typ.)(ISHA/ISHD/IDD/IEE)
5. Interface Type : FPC
6. Signal Interface : Brand Model Pin Pitch Pins Amount Configuration
0.5 mm 50 pins 1 pcs

INTRODUCTION:

The A LQ035Q7DH06 TFT LCD Module screen monitor is a fully-integrated, off-the-shelf unit (COTS) that combines high-performance Projected Capacitive Touch Technology (PCT or PCAP); in an industrial-grade LCD flat panel, with open Frame chassis mount industrial design. The PCAP industrial multi-touch displays with HMI interface provide full range of industrial-grade units with multi-function capabilities and brilliant displays.

We also provide full list for the Tianma LCD model series. We are distributor for Commercial & Industrial LCD Panel not only for the Tianma LCD, but also the LCD panels for Samsung, LG, Sharp, Innolux, AUO, BOE and more.

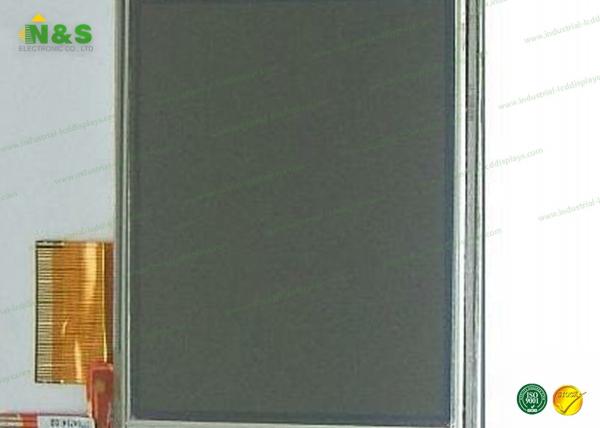

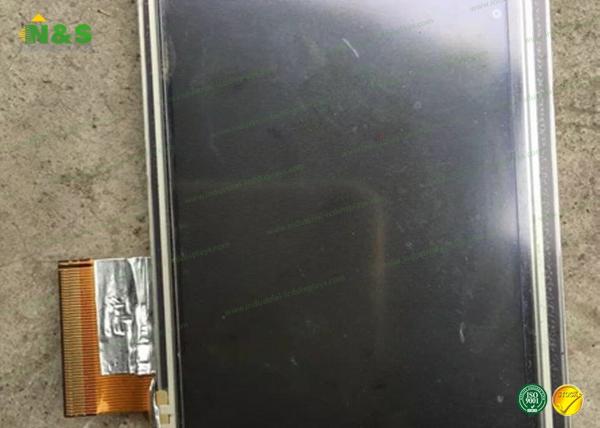

Pictures for For LQ035Q7DH06 TFT LCD Module:

Normally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness WarrantyNormally White 3.5 Inch Sharp LCD Panel LQ035Q7DH06 High Brightness Warranty
