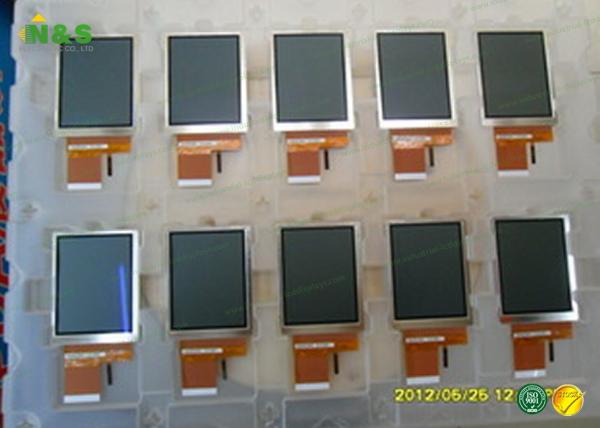

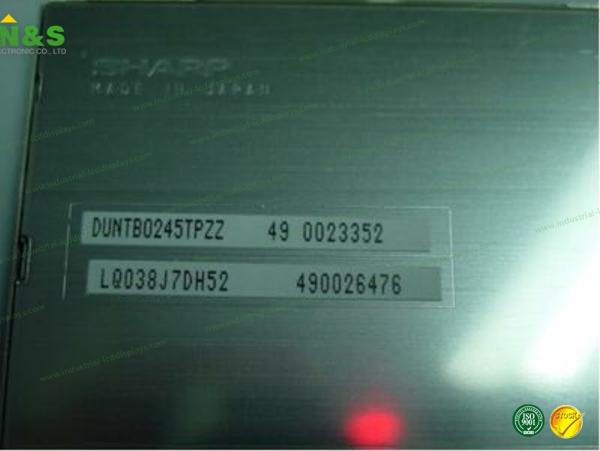

Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application
Specifications
Brand Name :
SHARP
Model Number :
LQ038J7DH52
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
200 Piece Per Day
Delivery Time :
2-3 workings for order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model NO :
LQ038J7DH52
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
3.8 inch
Display Mode :
TN, Normally White, Transflective
Active Area :
52.8×79.2 mm
Brightness :
80 cd/m²
Description

Low Power Consumption 3.8 Inch Sharp LCD Panel LQ038J7DH52 For Medical Application

Product Descriptions:

<

Contrast Ratio : 60:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit)
Response Time : 20/35 (Typ.)(Tr/Td)
Viewing Angle : 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 39 pins
Input Voltage : 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)

Features For LQ038J7DH52 TFT LCD Module:

<

Display Mode : TN, Normally White, Transflective
Brightness : 80 cd/m² (Typ.)
Contrast Ratio : 60 : 1 (Typ.) (Transmissive)
Contrast Ratio : 2:1 (Typ.) (Reflective)
Display Color : 262K (6-bit)
Response Time : 20/35 (Typ.)(Tr/Td)
Viewing Angle : 55/55/55/55 (Typ.)(CR≥2) (L/R/U/D)
Viewing Direction : 1 o'clock
Reflectance Ratio : 2.8/4% (Min./Typ.)
Sunlight Readable : Sunlight Readable

INTRODUCTION:

The A LQ038J7DH52 TFT LCD Module screen monitor is a fully-integrated, off-the-shelf unit (COTS) that combines high-performance Projected Capacitive Touch Technology (PCT or PCAP); in an industrial-grade LCD flat panel, with open Frame chassis mount industrial design. The PCAP industrial multi-touch displays with HMI interface provide full range of industrial-grade units with multi-function capabilities and brilliant displays.

We also provide full list for the Tianma LCD model series. We are distributor for Commercial & Industrial LCD Panel not only for the Tianma LCD, but also the LCD panels for Samsung, LG, Sharp, Innolux, AUO, BOE and more.

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 6-bit)
Input Voltage for Panel : 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE)
Input Current for Panel : 5.5/2.9/0.1/-0.1mA (Typ.)(ISHA/ISHD/IDD/IEE)
Interface Type : FPC
