Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
Specifications
Brand Name :
LG LCD Panel
Model Number :
LB035Q02-TD01
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
3.5 inch
Display Colors :
16.7M
Response Time :
25 (Typ.)(Tr+Td)
Contrast Ratio :
600:1 (Typ.)
Lamp Type :
6S1P WLED
Viewing Angle :
65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
Description

3.5 Inch LB035Q02-TD01 Clear, Hard coating LCD digital displaye LG LCD Panel

Technical parameters for LB035Q02-TD01 :

<

Panel Brand : LG. LCD
Panel Model : LB035Q02-TD01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 70.08×52.56 mm
Outline : 76.9×63.9×4.45 mm
Surface : Clear, Hard coating (3H)
Brightness : 300 cd/m² (Typ.)
Contrast Ratio : 400:1 (Typ.)
Display Colors : 16.7M
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 6S1P WLED
Signal Interface : Digital RGB (8/18/24-bit) + SPI , 60 pins
Input Voltage : 3.3/13/-9V (Typ.)(VCI/VGH/VGL)

Backlight System:

Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.

<

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 6S1P
Lamp Shape : 1 string
Lamp Current : 20mA (Typ.)
Lamps Power Consumption : 400mW (Typ.)
Interface Type : Included in panel signal interface

Company Information :

N&S is a manufacturer of capacitive touch panel and LCD/LCM display module with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs,our products are extensively used in medical,industrial control,handheld device,Smartwatch, POS,automotive,smart home and other fields.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.

custom original industrail lcd display

1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size

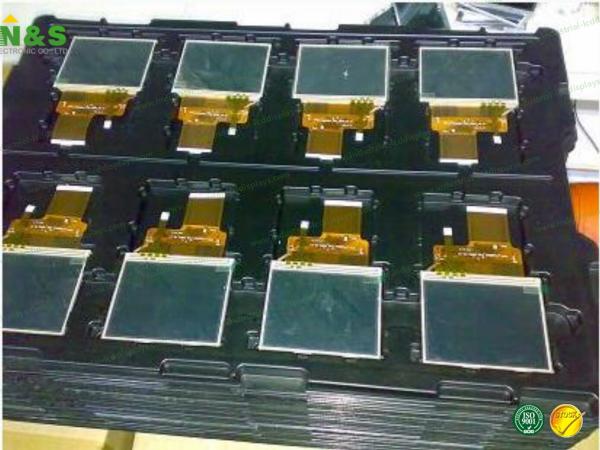

Pictures of LB035Q02-TD01 :

Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01

Hard Coating Clear 3.5 Inch LG LCD Panel With Full View Angle LB035Q02-TD01
