5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display
5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display
5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display
5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display
Specifications
Brand Name :
Optrex LCD Display
Model Number :
DMF5010NB-FW-BC
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
240×64
Brightness :
400 cd/m² (Min.)
Outline :
200×66 mm
Display Mode :
STN, Blue mode, Transmissive
Contrast Ratio :
7:1 (Typ.)
Frequency :
70Hz
Description

5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display

Specifications:

<

Panel Brand : OPTREX
Panel Model : DMF5010NB-FW-BC
Panel Type : STN-LCD , Panel
Panel Size : 5.2 inch
Resolution : 240×64
Display Mode : STN, Blue mode, Transmissive
Active Area : 127.2×33.9 mm
Outline : 200×66 mm
Brightness : 400 cd/m² (Min.)
Contrast Ratio : 7:1 (Typ.)
Display Colors : Monochrome
Response Time : 110/160 (Typ.)(Tr/Td)
Viewing Angle : 50/50/35/50 (Typ.)(CR≥2) (L/R/U/D)
Frequency : 70Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : 8-bit parallel , 20 pins
Input Voltage : 5.0V (Typ.)

Features :

1. Three year standard warranty

2. 500:1 contrast ratio, and 250-nit brightness (LCD panel)
3. High quality panel with 140° x 130° viewing angle

4. Fully RoHS compliant
5. Multilingual on-screen display (OSD)

6. Optional front mount and rack mount bezels
7. LED Backlight

8. Mounting options including rear-mount and VESA mount
9. Resistive Touchscreen Technology

Optical Features &Backlight System :

<

Display Mode : STN, Blue mode, Transmissive
Brightness : 400 cd/m² (Min.)
Contrast Ratio : 7 : 1 (Typ.) (Transmissive)
Display Color : Monochrome ()
Response Time : 110/160 (Typ.)(Tr/Td)
Viewing Angle : 50/50/35/50 (Typ.)(CR≥2) (L/R/U/D)
Viewing Direction : 6 o'clock
Lamp Position : Edge light type
Lamp Type : CCFL
Lamp Amount : 1 pcs
Lamp Shape : Straight
Lamp Life Time : 15K(Typ.) (Hours)
Lamp Voltage : 270V (Typ.)
Lamp Current : 5.0±1mA
Lamp Startup Voltage : 900V (Typ.)
Interface Type : Connecto

Our company:


We have a good reputation in the trading of electronic components and have built up a wide and stable relationship with agency and distributors of electronic components.


Our products have won praise from customers worldwide. We not only offer our own stock, but also help clients to search the parts in Chinese market.


We have implemented a strict and complete quality control system which ensures that all parts we offer are of good quality.


We have experienced workers and professional equipment to inspect the parts before shipment and always inform clients the true conditions of the parts.

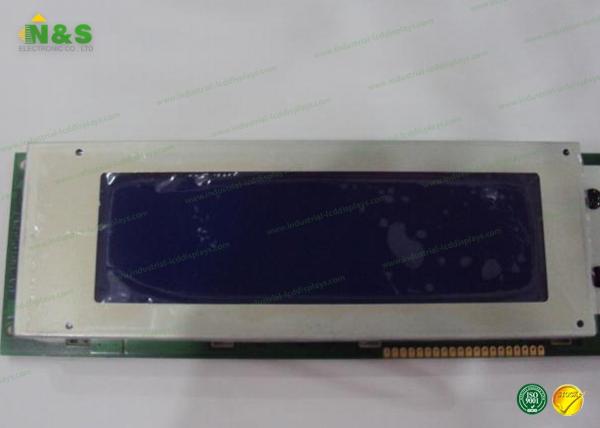

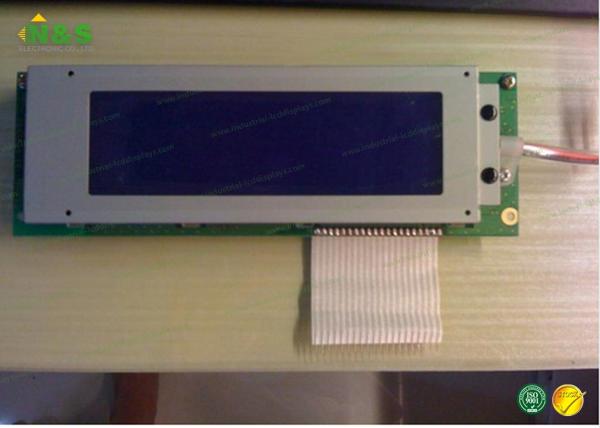

Pictures of OPTREX DMF5010NB-FW-BC Display:

5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display5.2 inch STN Blue mode STN-LCD Panel DMF5010NB-FW-BC Monochrome Optrex LCD Display
