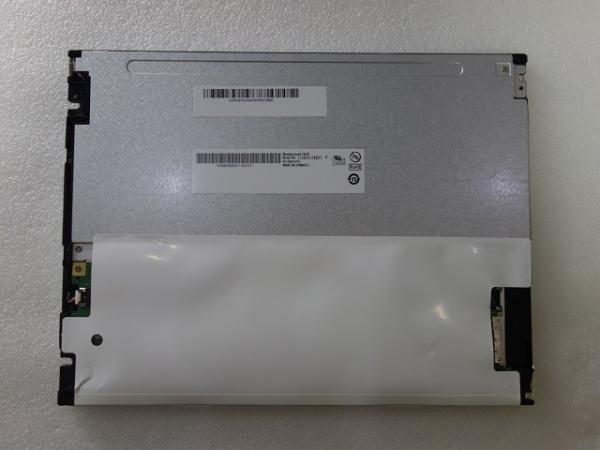

10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
Specifications
Brand Name :
AUO
Model Number :
G104STN01.0
Certification :
ISO9001
MOQ :
1pcs
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
1000pcs
Delivery Time :
1-2days
Size :
10.4 Inch
Resolution :
800*600
Brightness :
400
C/R :
700:1
View Angle :
80/80/60/70
Colors :
262K/16.2M
Backlight :
WLED
Interface :
LVDS
Viewing Angle :
80/80/60/70 (Typ.)(CR≥10)
Response :
10/5 (Typ.)(Tr/Td) ms
Storage Temp :
-30 ~ 80 °C
Operating Temp. :
-30 ~ 80 °C
Description

1.AUO G104STN01.0 Optical Features

Basic Information :Luminance (cd/m²)Viewing Angle (L/R/U/D)Response Time (ms)
400 (Typ.)80/80/60/70 (Typ.)(CR≥10)10/5 (Typ.)(Tr/Td)
Best View onDisplay ModeContrast Ratio
-TN, Normally White, Transmissive700 : 1 (Typ.) (Transmissive)
Dispaly Color :Color TemperatureDisplay ColorsWhite Coordinate
6638K262K/16.2M (6-bit / 6-bit + FRC)X:0.310; Y:0.330
1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
54%74%56%
DCI-P3 CoverageRec.2020 CoverageRemarks
56%40%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation :1.33 (Max.)(5 points) 10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver



2.AUO G104STN01.0 Mechanical Features

Panel Size :10.4"
Pixel Features :Pixel FormatPixel ConfigurationPixel Pitch (mm)Dot Pitch (mm)
800(RGB)×600 [SVGA]RGB Vertical Stripe0.264×0.2640.088×0.264
Mechanical Size :Active Area (mm)Bezel Area (mm)Outline Dimension (mm)Outline Depth (mm)
211.2(H) × 158.4(V)214.8(H) × 162.7(V)243(H) × 184(V)6.5±0.5 mm
Outline Features :Form FactorOrientationAspect RatioShape Style
Flat RectangleLandscape type4:3 (H:V)-
Mounting :Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Other Detail :WeightPanel CoverTreatment
365g (Typ.)-Antiglare, Hard coating (3H)


3.AUO G104STN01.0 Backlight Features

Lamp Features:TypePositionQuantity 10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED DriverShapeLife(Hours)Lamp Exchange
WLEDEdge light type (Bottom side)7S2P2 strings70K(Typ.)-
Interface Features :PositionBacklight DriverType
-With LED DriverConnector
Interface Detail :BrandModelPin PitchPin AmountQuantityConfiguration 10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
E&T3808K-F05N-02R1.25 mm5 pins1 pcs
Driver Electrical :Voltage SupplyCurrent SupplyPower Consumption
12.0V (Typ.)0.32A (Typ.)2.88W (Typ.)


4.FAQ
Q1:What's the quality of your LCD Panel?
A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?
A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?
A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?
A:Yes,sample order is welcome.

Q5:How can I get the quotation?
A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
10.4 Inch 800*600 TFT LCD Display G104STN01.0 With LED Driver
