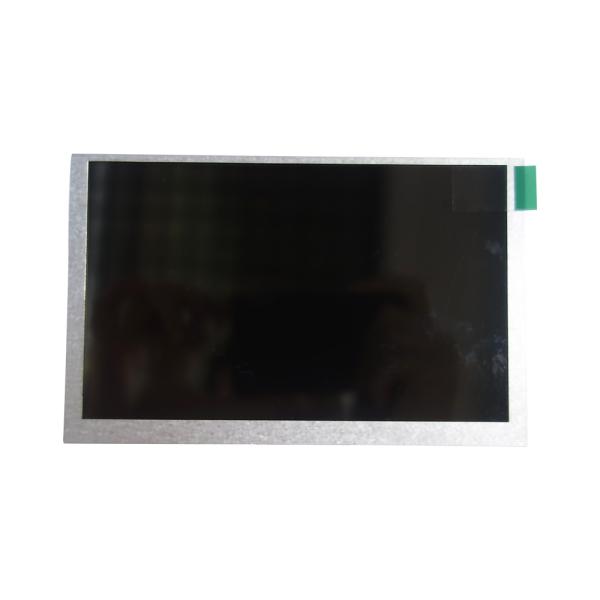

5.7 Inch With 33 Pins Connector TFT LCD Display LQ057Q3DC03 Use For Industrial
5.7 Inch With 33 Pins Connector TFT LCD Display LQ057Q3DC03 Use For Industrial
5.7 Inch With 33 Pins Connector TFT LCD Display LQ057Q3DC03 Use For Industrial
5.7 Inch With 33 Pins Connector TFT LCD Display LQ057Q3DC03 Use For Industrial
Specifications
Brand Name :
Sharp
Model Number :
LQ057Q3DC03
Certification :
ISO9001
MOQ :
1pcs
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box
Payment Terms :
T/T, Western Union,Escrow 10(we pay hkinventory escrow fee) ,Paypal
Supply Ability :
300
Size :
5.7 Inch
Resolution :
320×240
Brightness :
500
C/R :
350:1
View Angle :
80/80/80/65
Colors :
262K
Backlight :
WLED
View Direction :
View Direction
Interface Type :
Parallel RGB (1 ch, 6-bit) , 33 pins Connector
Operating Mode :
TN, Normally White, Transmissive
Touch Panel :
Without
Response Time :
30 (Typ.)(Tr+Td)
Description

1.LQ057Q3DC03 Mechanical Features:

Screen Size : 5.7 Inch
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320×240(RGB), QVGA RGB Horizontal Stripe 0.360×0.120 mm 0.360×0.360 mm [70PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
115.2×86.4 mm 121.0×92.2 mm 144×104.6 mm 12.3±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
210g (Max.) - Glare (Haze 0%), Hard coating (2H)
Holes & Brackets : Rear mounting holes (4-Φ2.6)

2.LQ057Q3DC03 Optical Features:

Basic Information : Luminance Work Mode Contrast Ratio
500 cd/m² (Typ.) TN, Normally White, Transmissive 350:1 (Min.) (Transmissive)
Good View at Viewing Angle Response Time
12 o'clock 80/80/80/65 (Typ.)(CR≥10) 30 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329

3.LQ057Q3DC03 Backlight Features:

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type 50K(Typ.) - - -
Interface Features : WLED Driver State Physical Type Interface Position
With LED Driver Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST SM06B-SRSS-TB(LF)(SN) 1 pcs 6 pins 1.0 mm
WLED Driver Electrical : Input Voltage Input Current Power Consumption
11.2/12.0/12.6V (Min./Typ./Max.) 200/250mA (Typ./Max.)

4.LQ057Q3DC03 Interface Features:

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 10/30mA (Typ./Max.) -
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Signal Type Physical Type Interface Position
Parallel RGB (1 ch, 6-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS FH12-33S-0.5SH(55) 1 pcs 33 pins 0.5 mm DRGB-33P1C6B-015A

5.FAQ:

Q1:What's the quality of your LCD Panel?

A:Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc. We are available to meet your different requirements.

Q2:What is your return and refund policy?

A:We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q3:How long is the lead time?

A:The lead time is about 2-3 working days after receipt of payment.

Q4:Do you accept sample order?

A:Yes,sample order is welcome.

Q5:How can I get the quotation?

A:Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
