Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
Specifications
Brand Name :
Chimei
Model Number :
LSA40AT9001
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS Per Day
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
10.4 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transflective
Brightness :
250 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Frequency :
60Hz
Description

Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine

Specifications:

custom original industrail lcd display
1. customized is welcome
2. fast delivery time
3. ISO 9001 certificate
4. small size

Product General Features:

<

Panel Size : 10.4 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 96 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.088×0.264 mm (H×V)
Pixel Pitch : 0.264×0.264 mm (H×V)
Weight : 379g
Surface : Hard coating (3H)
Active Area : 211.2×158.4 mm (H×V)
Bezel Area : 214.2×162.5 mm (H×V)
Outline Dimension : 228.4×175.4 mm (H×V)
Outline Depth : 5.9±0.3 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

Our Service to our clients for LCD Display Panel:

Q1: What's the quality of your products?

A: Various quality such as Original new OEM New, AAA Grade,etc. are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q4: Do you accept sample order?

A: Yes, sample order is welcome.

Q5: How can I get the quotation?

A: Please enquire via Skype,Email,whatsapp or telephone.

Q6: What is your main product line:

A: We provide the fulle list for the commercial & industrial LCD display panel incude but not limited to LG, Sharp, Samsung, Innolux, AUO, Tianma, BOE and More.

Chimei LSA40AT9001 Optical Features:

<

Display Mode : TN, Normally White, Transmissive
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330

The LSA40AT9001 LCD monitor offers exceptional image quality and dependable 24/7/365 operation. This monitor is ideally suited wherever you need detailed, high quality images in a rugged metal enclosure. The LSA40AT9001 monitors have been successfully used with machine vision systems, in police cars, public transportation, manufacturing plants and studios. They can also be private-labelled with your company, name, logo and model number.

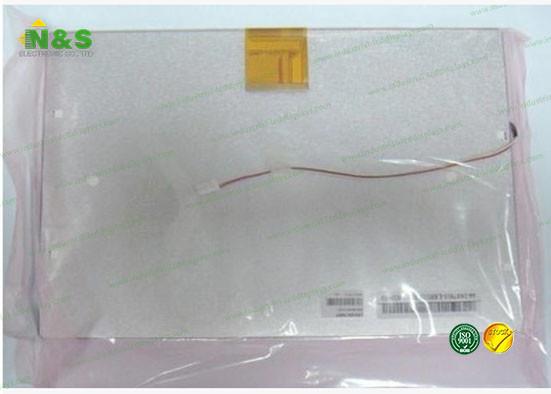

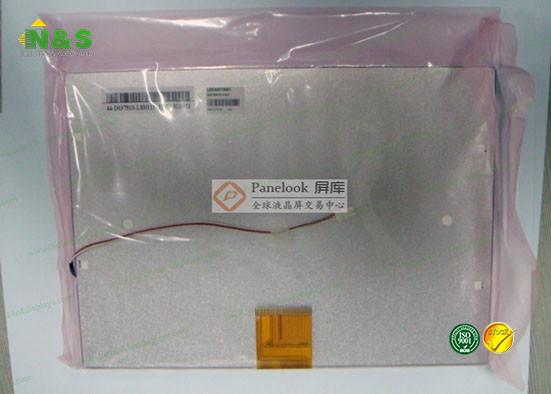

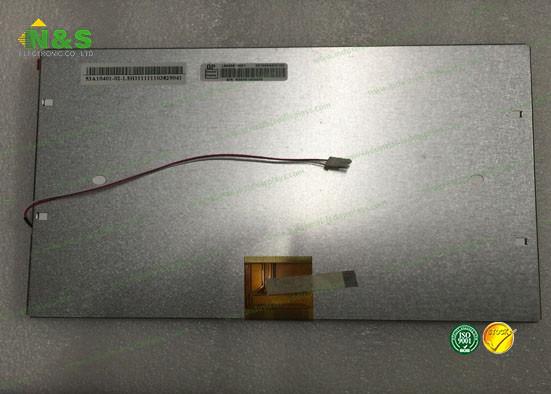

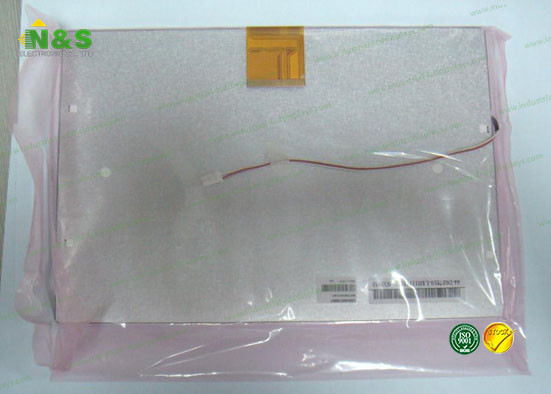

Details Picture for the LSA40AT9001 LCD Screen Display Panel:

Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine

Hard Coating 10.4 Inch Chimei LCD Panel RGB Vertical Stripe LSA40AT9001 For Industrial Machine
