Specifications
Brand Name :
Chimei
Model Number :
LW700AT9309
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS Per Day
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
800(RGB)×600 , SVGA
Panel Size :
7.0 inch
Surface :
Antiglare
Display Colors :
262K (6-bit) , CIE1931 45%
Frequency :
60Hz
Description

Chimei LCD Panel ,7.0inch LW700AT9309 Normally White High Brightness LCD Panel

Product General Features:

<<

Panel Size : 7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1905 mm (H×V)
Pixel Pitch : 0.1905×0.1905 mm (H×V)
Weight : TBD
Surface : Antiglare
Active Area : 152.4×91.44 mm (H×V)
Bezel Area : 155.30×94.30 mm (H×V)
Outline Dimension : 165×104.44 mm (H×V)
Outline Depth : 5.36/5.9 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without

Chimei LW700AT9309 Optical Features:

<

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 400 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Color Gamut : 45% NTSC (CIE1931)
Response Time : 5/11 (Typ.)(Tr/Td)
Viewing Angle : 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.299; Wy:0.328

The LW700AT9309 LCD monitor offers exceptional image quality and dependable 24/7/365 operation. This monitor is ideally suited wherever you need detailed, high quality images in a rugged metal enclosure. The LW700AT9309 monitors have been successfully used with machine vision systems, in police cars, public transportation, manufacturing plants and studios. They can also be private-labelled with your company, name, logo and model number.

Our Company Advantage in Industrial LCD Panel:

N$S Electronics Co., LTD, integrated LCD touch display solutions, which will make the process of your development easy. The module seals LCD, touch screen, the foundation hardware and software (driver), and universal connection (USB or RS232) to PC and embedded system.We focuses on LCD display module integrate touch screen in medium and small size between 5~12.1 inches. Touch screen technology is the most popular form in applications ranging from industry to consumer . It is more convenient compaired with key button control technology. The input signal includes HDMI, AV, VGA, S-video, DVI, YPbPr and 3G-SDI, etc.

Applications for Chimei LCD Panel , 7.0inch LW700AT9309:

Mainly Used in Closed-Circuit Surveillance Systems

Car Video, PC Operating Systems

Vehicle Navigation Systems Supporting Display

Can Also be Applied for Industrial Automation

Medical Machine Equipments

Electric Power

Petrification

Monitor

Navigation

POS, ATM and Instrumentation Display Systems

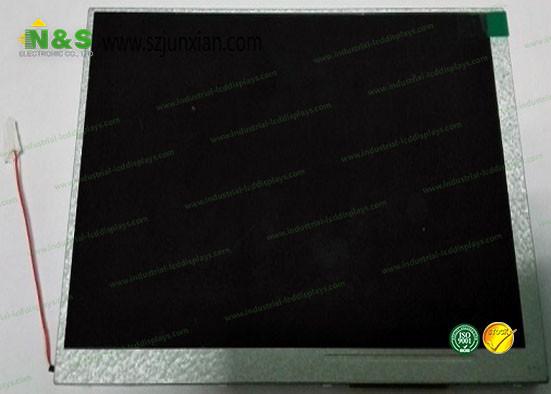

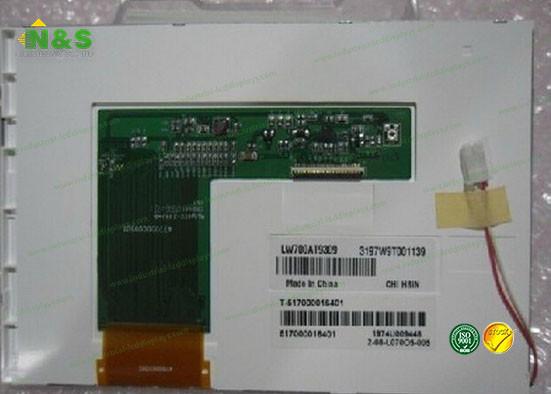

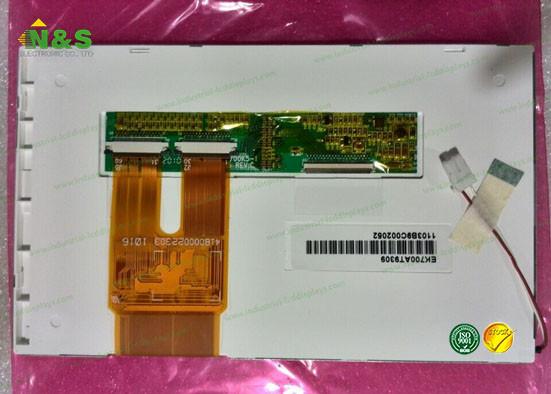

Details Picture for the LW700AT9309 LCD Screen Display Panel:

Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309

Wide Temperature Chimei LCD Module , 7.0'' LED Backlight Monitor LW700AT9309
