CSTN 640*480 9.4 Inch KOE LCD Display LMG9200XUCC-A , LCD Digital Panel 12 Months Warranty
CSTN 640*480 9.4 Inch KOE LCD Display LMG9200XUCC-A , LCD Digital Panel 12 Months Warranty
Specifications
Brand Name :
KOE
Model Number :
LMG9200XUCC-A
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
100 Pcs Per Day
Delivery Time :
2-3 Working Days after Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
CSTN-LCD, LCM
Application :
Industrila Application
Specific Feature :
Landscape Type
Dot Resolution :
640 (RGB) * 480 (VGA)
Pixel Configuration :
RGB Vertical Stripe
Aspect Ratio :
4:3 ( H : V)
Pixel Density :
84 PPI
Form Factor :
Flat Rectangle Display
Description

KOE Original 9.4 Inch 640*480 CSTN LCD Panel LMG9200XUCC-A Digital Panel

Advantages:

1) wide operating temperature -30~85℃
2) ISO9001 compliant
3) Original Brand New, A grade
4) 100% Original guarantee
5) 12 months of warranty
6) industrial LCD ,at least 3-5 years stable delivery

Industrial application:

1) Standard Usage

Computers, office equipment, factory automation equipment, test and measurement, test and measurement equipment, communications,

Transportation equipment (automobiles, ships, trains )

2) Special Usage

Medical equipment, safety equipment, transportation equipment

3) Specific Usage

Cockpit equipment, military systems, aerospace equipment, nuclear reactor control systems, life support systems

Specifications:

Module number LMG9200XUCC-A
Resolution 640 (RGB) x 480 (VGA)
Pixel Pitch 0.30 x 0.30 (mm)
Active Area 191.975(H) x 143.975(V) (mm)
Panel Type CSTN-LCD,LCM
Mode STN, Normally Black
Panel Size 9.4 Inch
Number of Colors 16.7M
Lamp Type 1 pcs CCFL
Application Industial Application
Pixel Density 84 PPI
Pixel Configuration RGB Vertical Stripe
Aspect Ratio 4:3 ( H:V)
Form Factor Flat Rectangle Display
LED Life (hrs.) 50K(Min.)
Power Consumption (W) 22(Typ.)
Supply Voltage (V) 5.0V
Response time 5 (ms)
Operate temperature -30-85 (°C)
Storage temperature -30-85 (°C)
Dot Pitch 0.10*0.30 mm ( H*V)
Pixel Pitch 0.30*0.30 mm ( H*V)

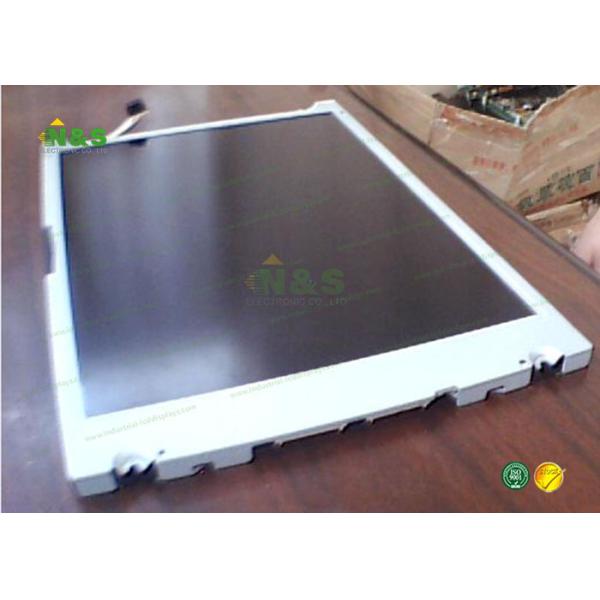

Detail Picture for KOE LMG9200XUCC-A Digital Panel:

CSTN 640*480 9.4 Inch KOE LCD Display LMG9200XUCC-A , LCD Digital Panel 12 Months Warranty

Tag: Industrial LCD Display Panel, LCD Screen Panel
