HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
Specifications
Brand Name :
KOE
Model Number :
TX18D46VM2BAA
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS PER DAY
Delivery Time :
2-3 Working Days After Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD, Panel
Resolution :
800(RGB)*480, WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
152.4*91.44 mm
Outline :
165*106*8.3
Brightness :
400 cd/m2 (Typ.)
Contrast Ratio :
600:1 (Typ.)
Display Colors :
262K ( 6-bit), CIE1931 45%
Response Time :
20(Typ.)(Tr+Td)
Viewing Angle :
70/70/65/65 (Typ.)(L/R/U/D)
Description

TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp

Quick Details:

· KOE 7.0″ Color TFT LCD

· LED Backlight

· 640 x 480 Resolution

· 350 Nit Brightness

· HD LCD Screen

· Low Power Consumption

· 400 cd/m2 (Typ.) Brightness

Product General Features:

Items Speciation
Screen Diagonal(inch) 7.0"
resolution 800 x R.G.B.x480
Active Area 152.4*91.44 mm ( H*V)
Pixel Pitch(mm) 0.1905*0.1905 mm (H*V)
Pixel Arrangement R.G.B. Vertical Stripe
brightness 400nits
Lamp Type WLED
viewing angle 70/70/65/65
Display Mode TN, Normally White, Transmissive
Nominal Input Voltage VDD(volt) 3.3 typ.
Weight(gram) 128
Physical Size(mm) 152.4(W) ×91.44(H) mm
Display Color 262K ( 6-bit )
Response Time 20 ( Typ.) (Tr+Td)
Viewing Direction 6 o'clock
White Variation 1.43 (Max.)(9 Points)
ISO9001 Compliance ISO9001 Compliance

Our Advantages:

1. Quality ensurance

100% original new and A grade,

You can enjoy the real panels directly from original factory;

2. Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3. Delivery ensurance:

Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.

4. After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.

We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.

6. Competitive quotation:

We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

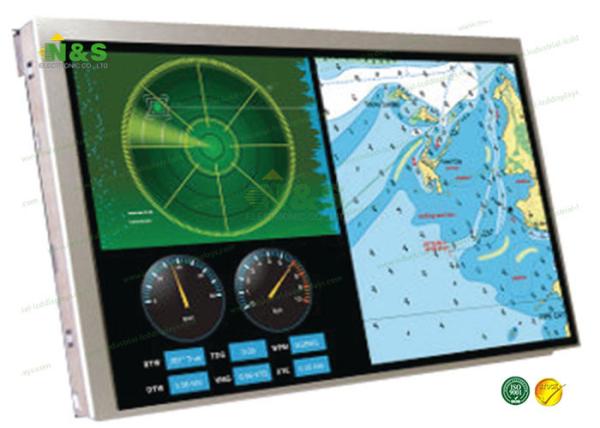

Details Picture for KOE TX18D46VM2BAA LCD Panel:

HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp

HD TX18D46VM2BAA 7.0 Inch KOE LCD Display with 800*480 Resolution and WLED Lamp
