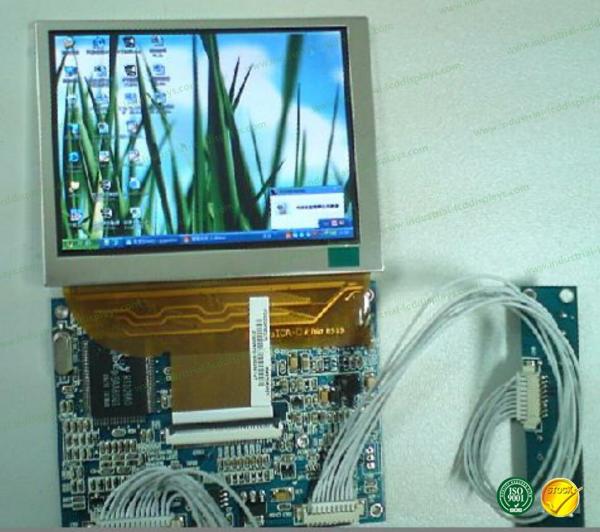

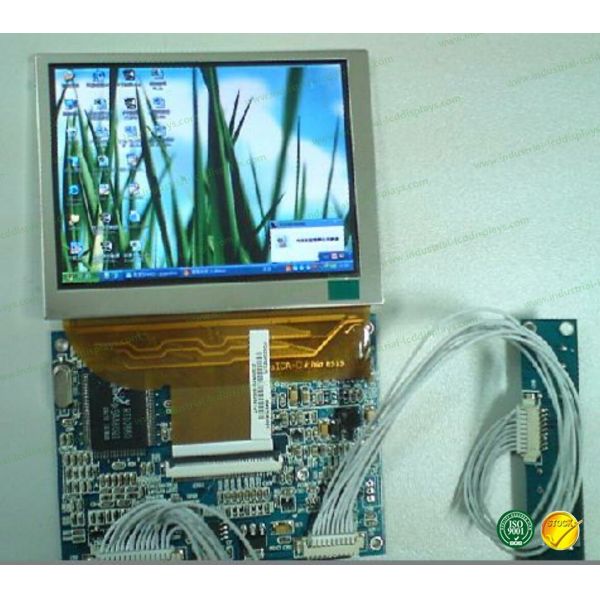

PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare
PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare
PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare
PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare
Specifications
Brand Name :
PVI
Model Number :
PD035VX2
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, Paypal, MoneyGram
Supply Ability :
100 PCS Per Day
Delivery Time :
2-3 Working Days after Order Confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
PD035VX2
Panel Size :
3.5inch
Resolution :
320(RGB)×234
Active Area :
129.6×97.34 mm
Surface :
Antiglare
Signal Interface :
Analog RGB + Composite Video (NTSC/PAL) , 20 pins
Description

PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare

Main features:

Panel Brand : PVI
Panel Model : PD035VX2
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 3.5 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 72×52.56 mm
Outline : 84.03×65.24 mm
Surface : Antiglare
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S2P WLED Without Driver
Signal Interface : TTL (1 ch, 6-bit) , 50 pins
Input Voltage : 3.3/3.3/10/17/-10V (Typ.)(VCC/VDD/VDD1/VCG/VEE)

Technical Specifications for PVI PA064DS1 LCD Panel:

<

Display Mode : TN, Normally White, Transmissive
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 600 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 15/25 (Typ.)(Tr/Td)
Viewing Angle : 75/75/50/60 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

The above parameters are inputted by electronic engineers according to the datasheet, every effort has been made to reduce errors, but we can not guarantee that the parameter is entirely correct.

<

Our company advantage in the TFT LCD Display Panel area:

As one of the leading LCD distributor in China, we are strong at EOL panels and hard to find shortage panels of world famous Brand such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA HITACHI/KOE Etc.

We work closely with more than 540 enterprises in the world, including large OEM factories,franchised distributors and well-known independent distributors in LCD industry.

PVI PA064DS1 Electronics Feature:

Vertical Frequency : 60Hz
Reverse Scan : Yes (U/D, L/R)
Total Power Consumption : 564/788mW (Typ./Max.)
Time Controller (T-CON) : Need external T-CON: PVI-2002A or PVI-2003A

PVI 3.5 Inch Industrial LCD Displays PD035VX2 With 262K Antiglare
