Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO
Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO
Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO
Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO
Specifications
Brand Name :
TPO
Model Number :
TD035SHED1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
TD035SHED1
Resolution :
480(RGB)×640 , VGA
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
3.5 inch
Active Area :
70.08×52.56 mm
Display Mode :
TN, Normally White, Transflective
Description

Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO

Quick Details:

Panel Brand : TPO
Panel Model : TD035SHED1
Active Area : 53.28×71.04 mm
Outline : 64×85 mm
Brightness : 170 cd/m² (Typ.)
Contrast Ratio : 200:1 (Typ.)(Transmissive) 8:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit) , CIE1931 37%
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 6S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) + SPI , 51 pins
Input Voltage : 3.0/3.0V (Typ.)(VDC/VDDIO)

Our Product Features and Advantages:

Display Mode : TN, Normally White, Transflective
Brightness : 170 cd/m² (Typ.)
Contrast Ratio : 200 : 1 (Typ.) (Transmissive)
Contrast Ratio : 8:1 (Typ.) (Reflective)
Display Color : 262K (6-bit)
Color Gamut : 37% NTSC (CIE1931)
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.25/1.43 (Typ./max.)(9 points)
Reflectance Ratio : 3.0/5.0% (Min./Typ.)
Sunlight Readable : Sunlight Readable

Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.

We are professional Industrial Panel Distributor of the following manufacturers: AUO, LG, Innolux, Sharp, NEC, BOE and More.

Technical parameters for TD035SHED1TPO LCD Panel :

<

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 6S1P
Lamp Shape : 1 string
Lamp Life Time : 5K(Min.) (Hours)
Lamp Voltage : 21.6/24V (Typ./Max.)
Lamp Current : 20/30mA (Typ./Max.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

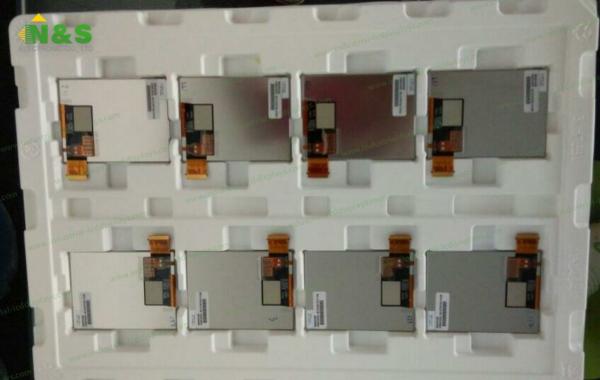

TD035SHED1TPO LCD Panel Packing Form:

1. Amount per Box : 120 pcs
2. Box Size : 450×318×207 mm (L×W×H)

Hard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPOHard Coating 3.5 Inch Industrial Lcd Monitor TD035SHED1 With VGA / TPO
