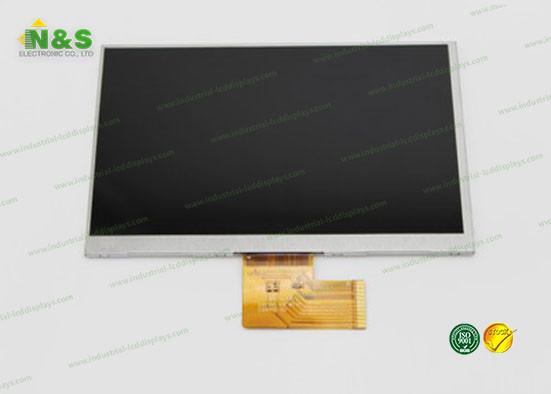

High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
Specifications
Brand Name :
Innolux
Model Number :
EJ070NA-01F
Certification :
ISO9001
MOQ :
1
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,HKIN ESCROW .....
Supply Ability :
500PCS/DAY
Delivery Time :
1-2days
Packaging Details :
Standard packing
Place of Origin :
China
Product number :
EJ070NA-01F
Brand :
Innolux
Size Of Panel :
7.0INCH
Resolution :
1024×600
Brightness :
250cd/m2
C/R :
700:1
Description

Innolux LCD Panel , 7.0''inch resolution EJ070NA-01F High Brightness LCD Panel

Specifications:

Panel Brand : CHIMEI INNOLUX
Panel Model : EJ070NA-01F
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 7.0 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 153.6×90 mm
Outline : 165.75×105.39×3.7 mm
Surface : Glare (Haze 0%), Hard coating
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 700:1 (Typ.)

EJ070NA-01F

Panel Model : EJ070NA-01F
Dot Resolution : 1024(RGB)×600 (WSVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 169 PPI
Aspect Ratio : 17:10 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.050×0.150 mm (H×V)
Pixel Pitch : 0.150×0.150 mm (H×V)
Weight : 101g (Typ.)
Surface : Glare (Haze 0%), Hard coating
Active Area : 153.6×90 mm (H×V)
Bezel Area : 156.4×92.8 mm (H×V)
Outline Dimension : 165.75×105.39 mm (H×V)
Outline Depth : 3.4±0.3 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type

Our Advantages For High Brightness LCD Panel:

We are a leading manufacturer of LCD products for more than 10 years. We got the ISO9001 quality management system certification. We have our own R&D team, and accept OEM order as per customer’s design. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba. Our main material LCD panels all are directly imported from Samsung and LG in Korea. All products win the certificate of CE,CCC,FCC and RoHS.

N&S will be your powerful partner on LCDs in China. Here we are to quote your need.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
V156B2-P02 Innolux 15.6" 1366×768
N154I2-P05 Innolux 15.4" 1280×800
C03024-01Z Innolux 3.0" 960×480(dot)
G121IJ1-P01 Innolux 12.1" 1280×800
F04307-06Z Innolux 4.3" 480×800
CG043JN16 Innolux 4.3" 480×800
F04008-01U Innolux 4.0" 480×800
N156BGE-P21 Innolux 15.6" 1366×768

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

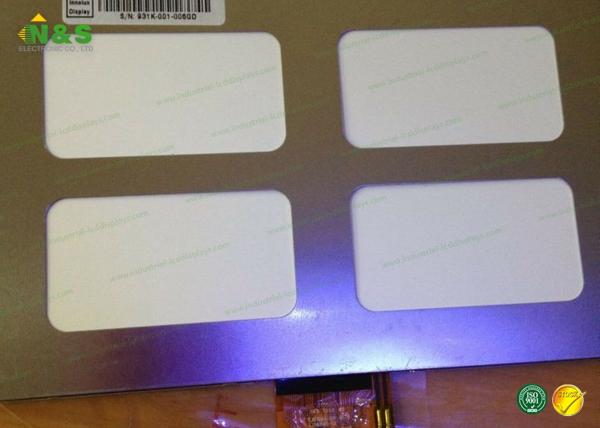

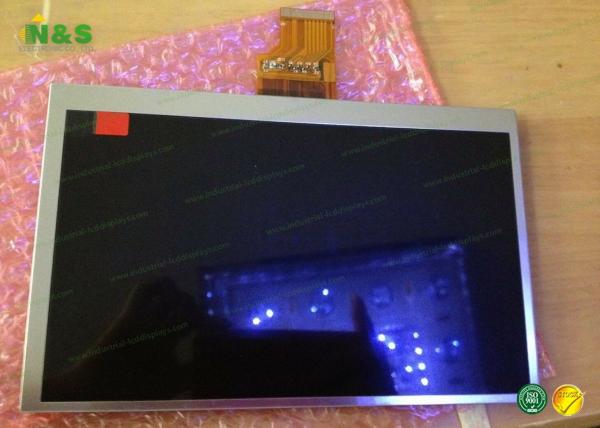

Some details of EJ070NA-01F :

High Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01FHigh Brightness Chimei Innolux Display , 7 Inch TFT Lcd Display EJ070NA-01F
