RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
RGB 19.5 CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
M195FGE-L20
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Color Gamut :
70% NTSC (CIE1931)
Response Time :
10/15 (Typ.)(Tr/Td)
Lamp Type :
WLED
Lamp Shape :
Array
Active Area :
193.92×121.2 mm (H×V)
Touch Panel :
Embeded (Projected Capacitive Touch)
Description

RGB 19.5" CHIMEI INNOLUX LCD Panel For All - In - One PC M195FGE-L20

Technical parameters:

<

Panel Brand : CHIMEI INNOLUX
Panel Model : M195FGE-L20
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 19.5 inch
Resolution : 1600(RGB)×900 , HD+
Display Mode : TN, Normally White, Transmissive
Active Area : 432×239.76 mm
Outline : 452×263×11 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 1000:1 (Typ.)
Display Colors : 16.7M (6-bit + Hi-FRC) , CIE1931 72%
Response Time : 5 (Typ.)(Tr+Td)
Viewing Angle : 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 strings WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

About Shipping:

we will test them strictly before shipping.

we will ship it in 1-3 working days after your paying.we only ship according to the shipping address,if you want to change shipping address,pls contact me in advance in time.as to the shipping time,it usually will be 7-30 days,which will be different for different countries.

Welcome to our shop
You can direct payment!Arrange delivery!1-3 days
We have many company's kinds of goods in a shop), and, more importantly, you will get high quality, lowest price and fast delivery.I am waiting for you!!!
Our work time: Monday - Friday, except legal holidays.

Competitive Information:

1. We are a leading manufacturer of LCD products for more than 10 years.

2. We got the ISO9001 quality management system certification.

3. We have our own R&D team, and accept OEM order as per customer’s design.

4. We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.

5. Our main material LCD panels all are directly imported from Samsung and LG in Korea.

6. All products win the certificate of CE,CCC,FCC and RoHS.

7. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.

8. 3-years warranty is offered.

INNOLUX M195FGE-L20 Backlight System :

Lamp Position : Edge light type (Right side)
Lamp Type : WLED
Lamp Amount : 4 strings
Lamp Shape : 4 strings
Lamp Life Time : 40K(Min.) (Hours)
Lamp Voltage : 31.0/34.0V (Typ./Max.)
Lamp Current : 65/69mA (Typ./Max.)
Lamps Power Consumption : 8.06/8.84W (Typ./Max.)
Interface Type : Connector

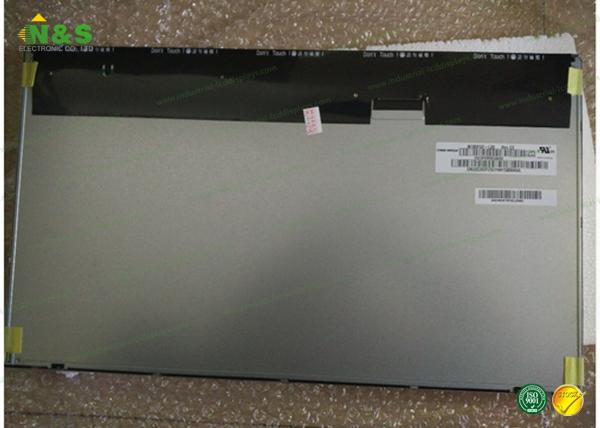

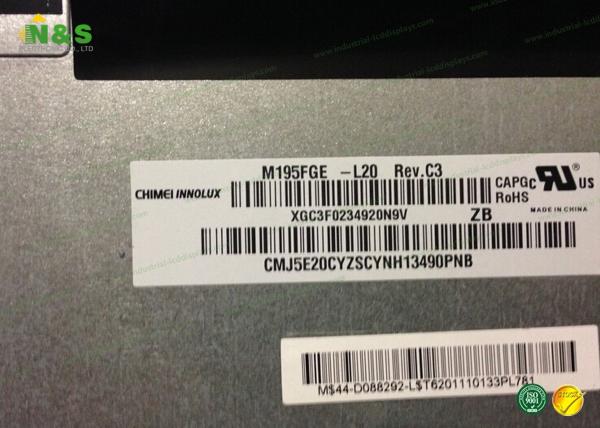

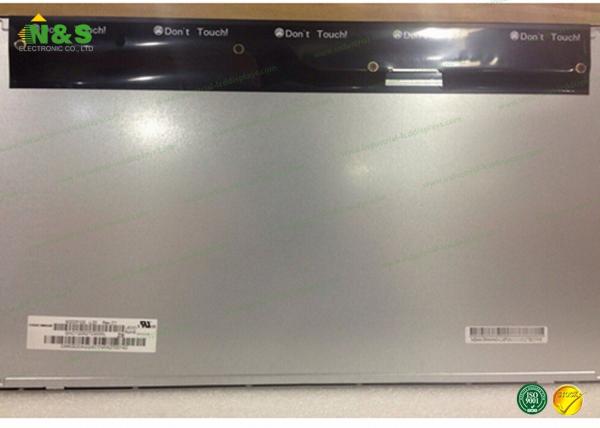

Pictures of M195FGE-L20 Display:

RGB 19.5RGB 19.5RGB 19.5
