Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
EE101IA-01D
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
10.1 inch
Transmissivity :
5.4% (Typ.)(with Polarizer)
Contrast Ratio :
800:1 (Typ.)
Pixel Density :
149 PPI
Form Factor :
Flat Rectangle Display
Weight :
80g (Typ.)
Description

Innolux 10.1" IPS Normally Black Panel with Hard coating LCD Display EE101IA-01D

Company Strength:

ISO9001 certificated, Factory Direct Supplied.
Competitive Price and Short Lead-time.
Professional Team with Rich Experiences in Design / Mfg / Quality Control
Small MOQ Support & Fast Response to Customers.
Long Porduct Life Time.

Products information:

Panel Brand :CHIMEI INNOLUX
Panel Model : EE101IA-01D
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 10.1 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : IPS, Normally Black, Transmissive
Active Area : 216.96×135.6 mm
Outline : 229.46×149.1 mm
Surface : Hard coating
Glass Depth : 0.40+0.40 mm
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : LVDS (1 ch, 8-bit) , 40 pins
Input Voltage : 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)

Optical Features & Signal Interface :

<

Display Mode : IPS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 800 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.310; Wy:0.320
Transmissivity : 5.4% (Typ.)(with Polarizer)
Signal Category : LVDS
Signal Class : LVDS (1 ch, 8-bit)
Input Voltage for Panel : 2.5/8.2/22/-7V (Typ.)(VDD/AVDD/VGH/VGL)
Input Current for Panel : 95/45/0.71/0.71mA (Typ.)(IDD/AIDD/IGH/IGL)
Panel Power Consumption : 0.7W (Typ.)
Interface Type : Connector

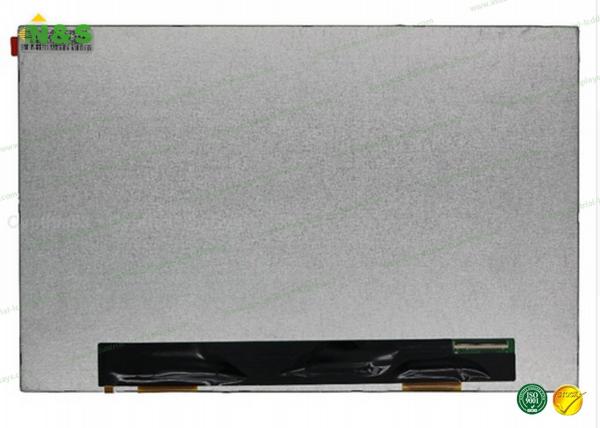

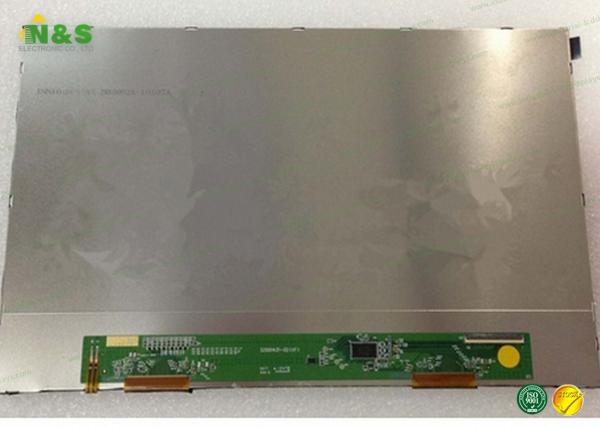

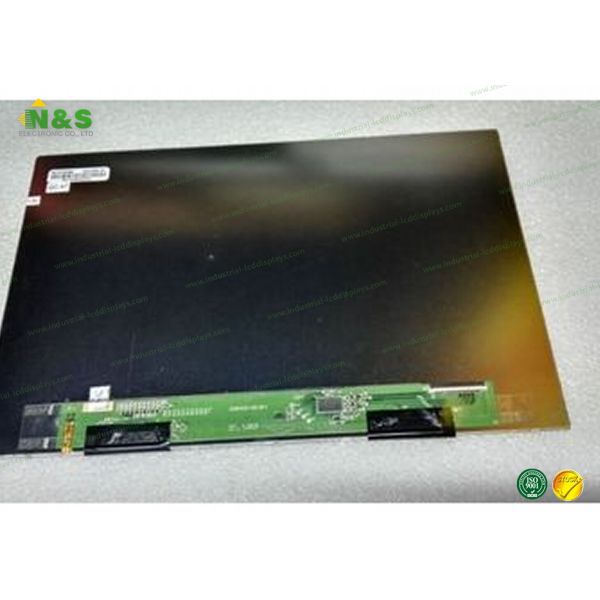

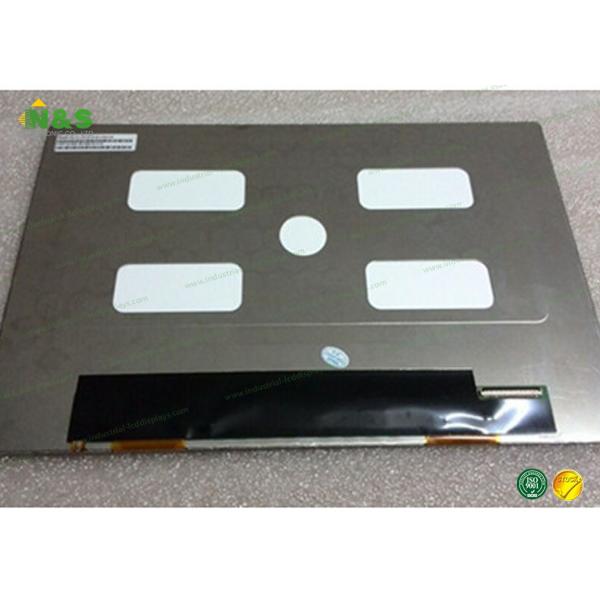

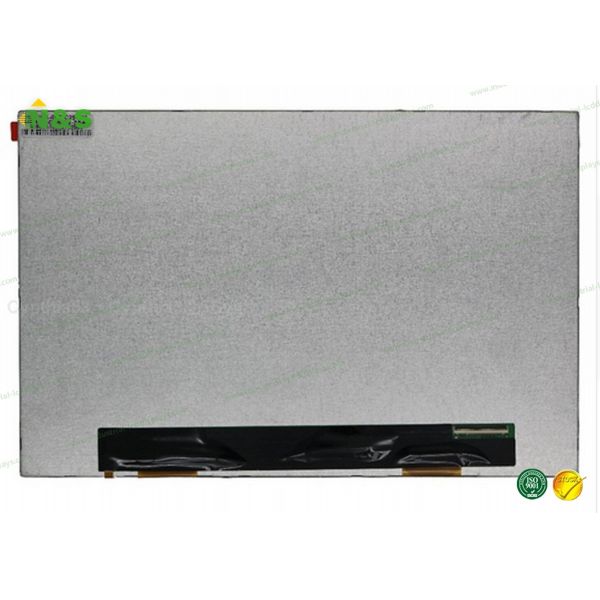

Pictures of EE101IA-01D LCD Display:

Normally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01DNormally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01DNormally Black 10.1 Innolux LCD Panel LED Backlighting For Industrial / Commercial EE101IA-01D
