Antiglare 3.5 Industrial LCD Displays Adjustable Brightness Controls TD035STED4
Antiglare 3.5 Industrial LCD Displays Adjustable Brightness Controls TD035STED4
Specifications
Brand Name :
Toppoly
Model Number :
TD035STED4
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 Pcs Per Day
Delivery Time :
2-3 Working Holiday
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
TD035STED4
Resolution :
320(RGB)×234
Active Area :
129.6×97.34 mm
Outline :
156.3×119.8×14.7 mm
Surface :
Antiglare
Display Mode :
TN, Normallly Whte, TMR
Description

Antiglare 3.5" Industrial LCD Displays Adjustable Brightness Controls TD035STED4

Toppoly TD035STED4 General Features:

<

Panel Brand : Toppoly
Panel Model : TD035STED4
Panel Type : LTPS TFT-LCD , Panel
Panel Size : 3.5 inch
Resolution : 240(RGB)×320 , QVGA
Display Mode : TN, Normally White, Transflective
Active Area : 53.28×71.04 mm
Outline : 64.3×87.1×4.8 mm
Surface :
Brightness : 115 cd/m² (Typ.)
Contrast Ratio : 100:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
Display Colors : 262K (6-bit) , CIE1931 36%
Response Time : 35 (Typ.)(Tr+Td)
Viewing Angle : 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4S1P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) + SPI , 61 pins
Input Voltage : 2.8/5.0/10/-5.5V (Typ.)(VDD/AVDD/VGH/WEE)

Toppoly TD035STED4 Electronics Feature

Vertical Frequency : 60Hz
Reverse Scan : Yes (180°)
Total Power Consumption : 313mW (Typ.)
Time Controller (T-CON) : Embedded T-CON

We can do for you:

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels & Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

  1. Provide excellent LCD screen replacements with competitive price.
  2. Safe, quick and efficient supply chain.
  3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
  4. Your problems will be replied within 24 hours.

Keep pace with the times and mutual benefit is our philosophy. We expect being your purchasing assistant in the LCD Screen Panel Replacements area.

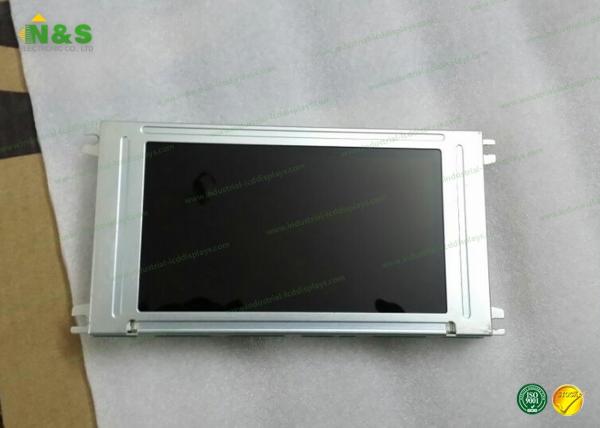

Picture Show for TD035STED4 LCD Display Panels:

Antiglare 3.5
