262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
Specifications
Brand Name :
HannStar
Model Number :
HSD080IDW1-A00
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Response Time :
5/20 (Typ.)(Tr/Td)
Viewing Angle :
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :
3S6P WLED
Signal Interface :
TTL (1 ch, 6/8-bit) , 60 pins
Display Mode :
TN, Normally White, Transmissive
Active Area :
176.64×99.36 mm
Outline :
192.8×116.9 mm
Surface :
Antiglare, Hard coating (3H)
Description

262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED

HannStar HSD080IDW1-A00 General Features

Panel Brand : HannStar
Panel Model : HSD080IDW1-A00
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 8.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 176.64×99.36 mm
Outline : 192.8×116.9 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.2M (6-bit / 6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 3S6P WLED
Signal Interface : TTL (1 ch, 6/8-bit) , 60 pins
Input Voltage : 3.0/10/15/-9V (Typ.)(VCC/AVDD/VGH/VGL)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

HannStar HSD080IDW1-A00 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.2M (6-bit / 6-bit + FRC)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.43 (Max.)(9 points)

HannStar HSD080IDW1-A00 Mechanical Features

Panel Size : 8.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 116 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0736×0.2070 mm (H×V)
Pixel Pitch : 0.2208×0.2070 mm (H×V)
Weight : 240g (Typ.)
Surface : Antiglare, Hard coating (3H)
Active Area : 176.64×99.36 mm (H×V)
Bezel Area : 180.1×103.4 mm (H×V)
Outline Dimension : 192.8×116.9 mm (H×V)
Outline Depth : 6.4±0.3 mm
Holes & Brackets : Side mounting holes (4-M2)
Landscape or Portrait : Landscape type
Touch Panel : Without

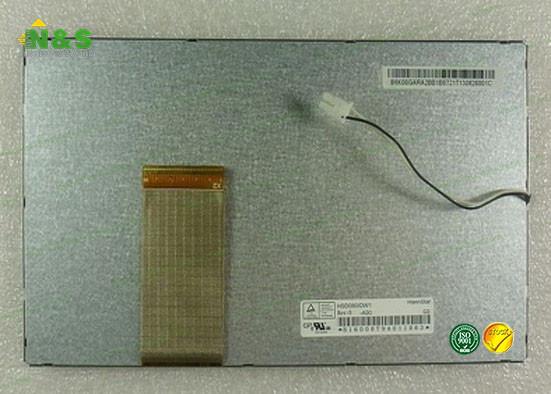

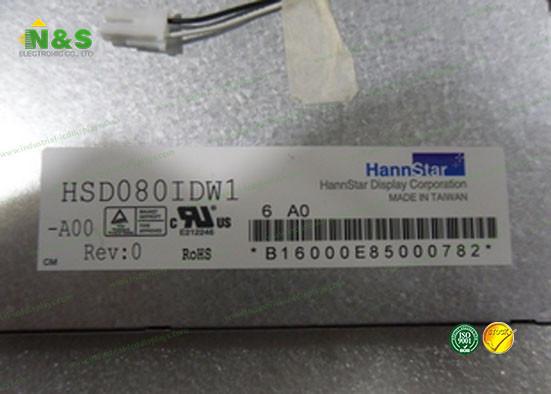

Details Pictures for HannStar HSD080IDW1-A00

262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED

262K / 16.2M industrial touch screen lcd monitors Lamp Type 3S6P WLED
