CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz
CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz
CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz
CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz
Specifications
Brand Name :
Industrial LCD Displays
Model Number :
CLAA040JC06CW
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Industrial LCD Displays
Panel Model :
CLAA040JC06CW
Brightness :
400 cd/m² (Typ.)
Contrast Ratio :
300:1 (Typ.)
Display Colors :
16.7M (8-bit)
Response Time :
25 (Typ.)(Tr+Td)
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
4.0 inch
Description

CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz

Panel Brand : CPT
Panel Model : CLAA040JC06CW
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 4.0 inch
Resolution : 480(RGB)×272 , WQVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 87.84×49.776 mm
Outline : 98.3×62.6 mm
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 3.3V (Typ.)

CLAA040JC06CW Mechanical Feature

Panel Size : 4.0 inch
Dot Resolution : 480(RGB)×272 (WQVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 138 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.061×0.183 mm (H×V)
Pixel Pitch : 0.183×0.183 mm (H×V)
Weight : 56g (Typ.)
Active Area : 87.84×49.776 mm (H×V)
Bezel Area : 90.6×52.7 mm (H×V)
Outline Dimension : 98.3×62.6 mm (H×V)
Outline Depth : 5.05±0.3 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

CLAA040JC06CW Backlight System

Lamp Position : Edge light type (Bottom side)
Lamp Type : WLED
Lamp Voltage : 23.1/25.5V (Typ./Max.)
Lamp Current : 23mA (Typ.)
Lamps Power Consumption : 531.3mW (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

Our service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

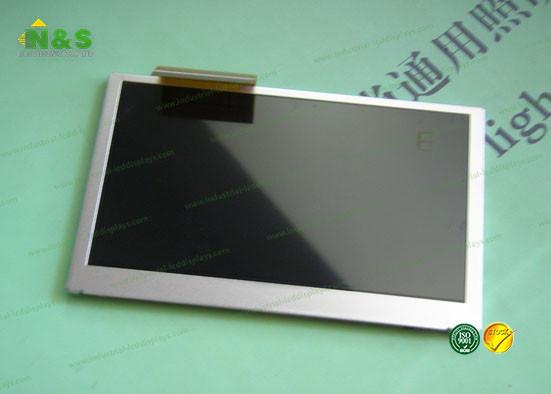

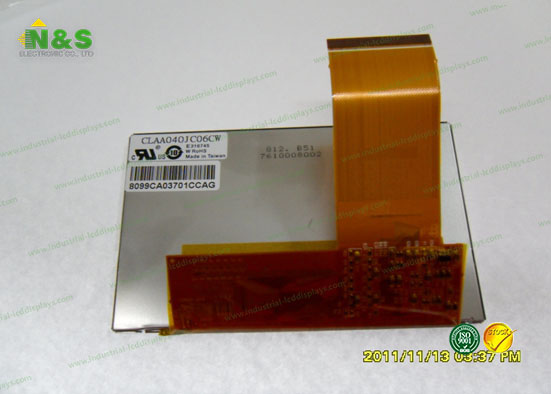

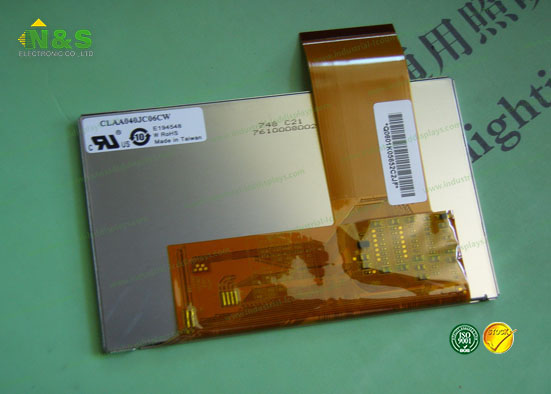

Details Pictures for CLAA040JC06CW

CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz

CLAA040JC06CW 4.0 inch Industrial LCD Displays 16.7M 8bit Frequency 60Hz
