HannStar HSD101PWW1- A00 industrial touch screen monitor 10.1 inch Brightness 350 cd / m²
HannStar HSD101PWW1- A00 industrial touch screen monitor 10.1 inch Brightness 350 cd / m²
Specifications
Brand Name :
HannStar
Model Number :
HSD101PWW1-A00
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Input Voltage :
3.3V (Typ.)
Signal Interface :
LVDS (1 ch, 6-bit) , 40 pins
Lamp Type :
WLED
Frequency :
60Hz
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Response Time :
25 (Typ.)(Tr+Td)
Display Colors :
262K (6-bit) , CIE1931 45%
Contrast Ratio :
800:1 (Typ.)
Description

HannStar HSD101PWW1- A00 industrial touch screen monitor 10.1 inch Brightness 350 cd / m²

What Is Our Advantages

1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

HannStar HSD101PWW1-A00 General Features

Panel Brand : HannStar
Panel Model : HSD101PWW1-A00
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1280(RGB)×800 , WXGA
Display Mode : HS-IPS, Normally Black, Transmissive
Active Area : 216.96×135.6 mm
Surface : Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 800:1 (Typ.)
Display Colors : 262K (6-bit) , CIE1931 45%
Response Time : 25 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

HannStar HSD101PWW1-A00 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Life Time : 10K(Min.) (Hours)
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 5.5/21.0V (Min./Max.)
Lamp Driver Board : 2.25W (Max.)

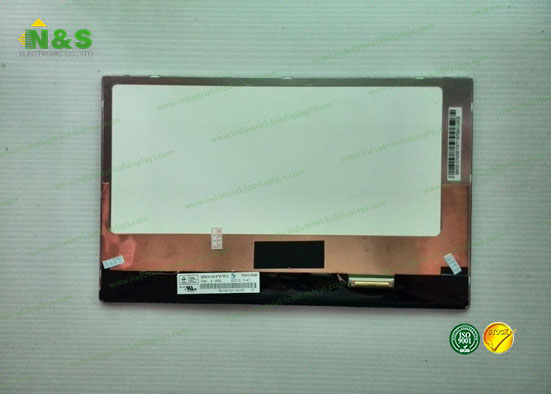

Details Pictures for HannStar

HannStar HSD101PWW1- A00 industrial touch screen monitor 10.1 inch Brightness 350 cd / m²

HannStar HSD101PWW1- A00 industrial touch screen monitor 10.1 inch Brightness 350 cd / m²
