Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
Specifications
Brand Name :
Tianma LCD Displays
Model Number :
TM050RDH01
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
108×64.8 mm
Outline :
120.7×75.8×3.1 mm
Display Colors :
16.7M (8-bit) , CIE1931 50%
Response Time :
20 (Typ.)(Tr+Td)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency :
60Hz
Description

Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor

Our Advantages

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: PayPal, Western Union and T/T are preferred, so just tell us which is easier to you. Then we will send you our bank details. Or your requirements.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, Trade Manager or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 7~10 working days. For bulk orders, usually 15~20 working days and depends on your design.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship samples. For bulk orders, we support shipping by air or by sea.

Q6: Can you customize according to our designs and put our logo on the products?

A6: Yes, we support both standard and customized products and can put your logo on the products. Our experienced R&D team will support technical questions. ODM/OEM is welcome.

Packing & Delivery for our LCD Screen Panel Replacements

1. Anti-static Bag Packing.

2. Anti-Shock Bubble Bag Packing

3. Foam and Hard Carton Packing

4. Picked up by forward and delivered by express services.

TIANMA TM050RDH01 General Features

Panel Brand : TIANMA
Panel Model : TM050RDH01
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 108×64.8 mm
Outline : 120.7×75.8×3.1 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 600:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 50%
Response Time : 20 (Typ.)(Tr+Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 7S2P WLED
Signal Interface : Parallel RGB (1 ch, 8-bit) , 40 pins
Input Voltage : 3.3V (Typ.)

TIANMA TM050RDH01 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 7S2P
Lamp Shape : Array
Lamp Life Time : 20K(Typ.) (Hours)
Lamp Voltage : 23.1V (Typ.)
Lamp Current : 40/50mA (Typ./Max.)
Lamps Power Consumption : 924mW (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

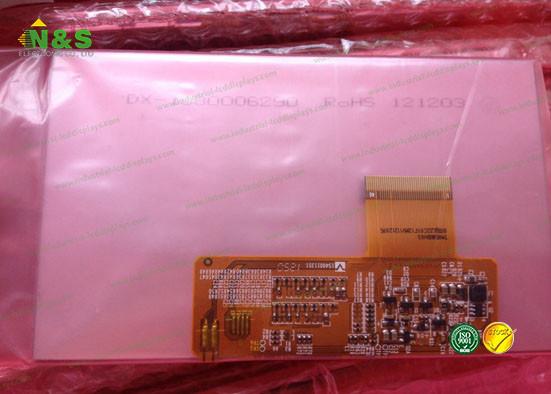

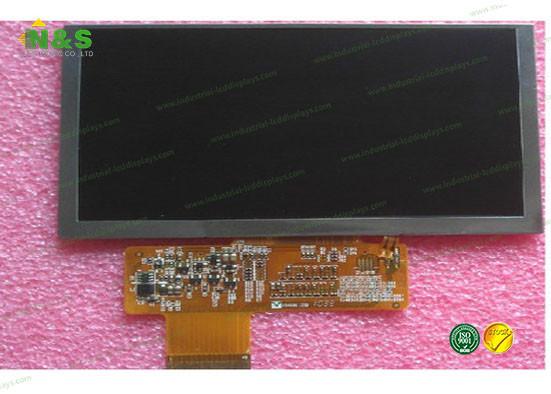

Details Pictures for Tianma LCD Displays Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor

Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor

Frequency 60Hz Tianma LCD Displays , high Resolution tft lcd color monitor
