262K Industrial LCD Displays , Hard coating small tft monitor 30 pins
262K Industrial LCD Displays , Hard coating small tft monitor 30 pins
262K Industrial LCD Displays , Hard coating small tft monitor 30 pins
262K Industrial LCD Displays , Hard coating small tft monitor 30 pins
Specifications
Brand Name :
HannStar
Model Number :
HSD100IFW1-A01
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
HannStar
Panel Model :
HSD100IFW1-A01
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
10.1 inch
Surface :
Antiglare, Hard coating (3H)
Brightness :
250 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
262K (6-bit)
Description

262K Industrial LCD Displays , Hard coating small tft monitor 30 pins

Panel Brand : HannStar
Panel Model : HSD100IFW1-A01 5 Compatible model
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 10.1 inch
Resolution : 1024(RGB)×600 , WSVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 220.416×129.15 mm
Outline : 235×145.8×5.8 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 5/20 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : LVDS (1 ch, 6-bit) , 30 pins
Input Voltage : 3.3V (Typ.)

Company Strength

1. ISO9001 certificated, Factory Direct Supplied

2. RoHS Compliant, Lead Free, Reach Compliant

3. Competitive Price and Short Lead-time

4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

5. Small MOQ Support & Fast Response to Customers

6. Long Product Life Time

HannStar HSD100IFW1-A01 Backlight System

Lamp Position : Edge light type
Lamp Type : WLED
Interface Type : Included in panel signal interface
Lamp Driver Board : Embedded (LED Driver)
Lamp Driver Board : 5.0±0.3V [Input Voltage]
Lamp Driver Board : 3.1W (Max.)

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

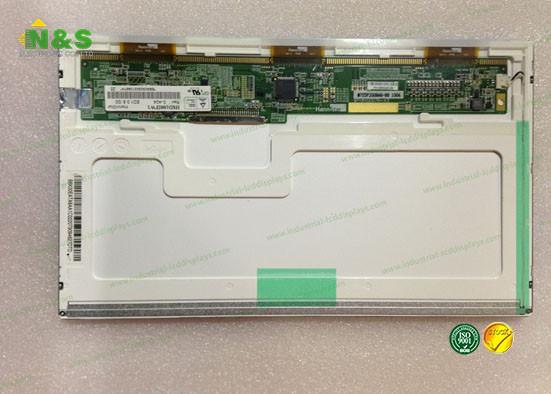

Details Pictures for HannStar HSD100IFW1-A01

262K Industrial LCD Displays , Hard coating small tft monitor 30 pins

262K Industrial LCD Displays , Hard coating small tft monitor 30 pins
