AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
AT050TN23 V.1
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Surface :
Antiglare
Brightness :
350 cd/m² (Typ.)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
262K (6-bit)
Response Time :
10/15 (Typ.)(Tr/Td)
Viewing Angle :
70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Panel Size :
5.0 inch
Panel Model :
AT050TN23 V.1
Description

AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive

What We Can Do for You:
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

INNOLUX AT050TN23 V.1 General Features

Panel Brand : INNOLUX
Panel Model : AT050TN23 V.1
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 5.0 inch
Resolution : 640(RGB)×480 , VGA
Display Mode : TN, Normally White, Transmissive
Active Area : 101.568×76.176 mm
Outline : 117.65×88.43×6 mm
Surface : Antiglare
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : WLED Embedded (LED Driver)
Signal Interface : Parallel RGB (1 ch, 6-bit) , 40 pins


INNOLUX AT050TN23 V.1 Mechanical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)




Payment and Shipment
1. We accept Alipay, Western Union, T/T, etc. All major credit cards are accepted through secure payment processor ESCROW
2. Item will be shipped out within 1-3 days.
3. Make sure your address is correct (full name is recommended). We are not responsible for any wrong or undeliverable address.
4. We are not responsible for the possibly additional import duties, remote area charges, taxes or other Customs related fee.
5. Delivery time:
--via DHL, Fedex, UPS: 3-7 working days
--via EMS: 7-15 working days
--via Air Mail or Parcel: 10-30 working days (sometimes longer)
NOTICE: delivery time should not be considered as an aspect of your feedback.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AE060RN01 Innolux 6.0" 800×600
F050A12-601 Innolux 5.0" 480×854
85C02502-Y21 Innolux 2.5" 320×240
V260B2-P03 Rev.C2 Innolux 26.0" 1366×768
G070YG1-P01 Innolux 7.0" 800×480
F03215-01Z Innolux 3.2" 360×480
F0352A-01U Innolux 3.5" 320×480
F07020-01D Innolux 7.0" 480×234
HB101NA-01C Innolux 10.1" 1280×800
BP059IA-01A Innolux 5.9" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

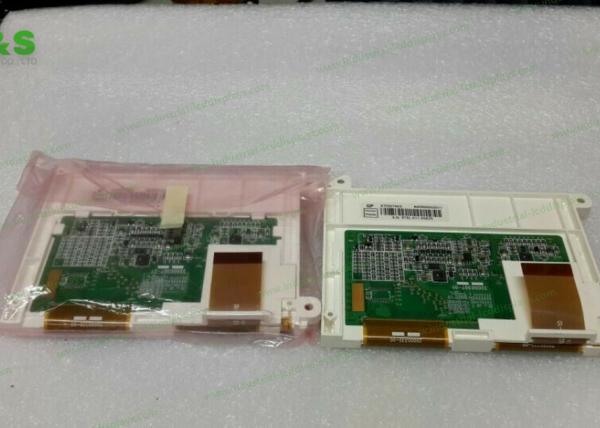

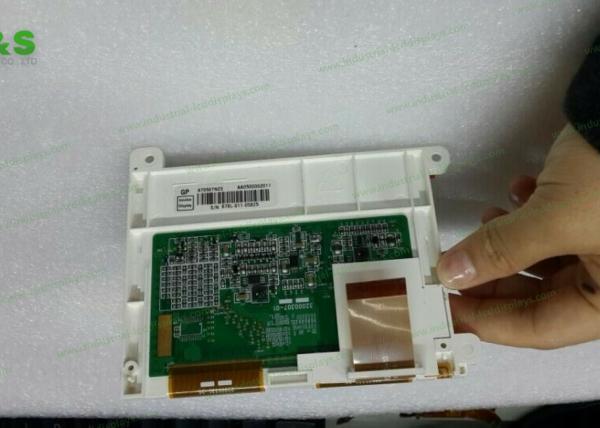

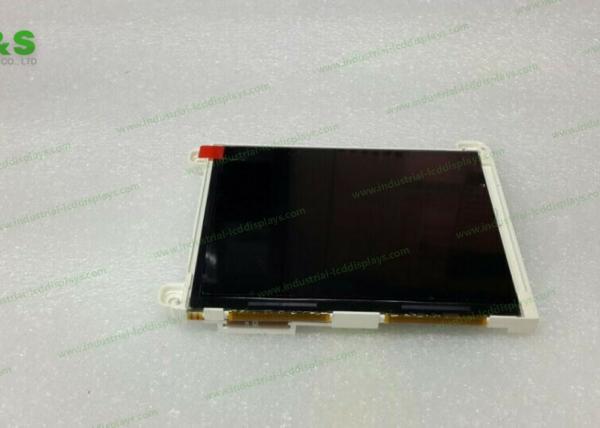

Details Pictures for Innolux LCD Panel AT050TN23 V.1
AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive

AT050TN23 V.1 / V.3 / V.5 Innolux LCD Panel TN Normally White / Transmissive
