Univision UG - 6028GDEAF01 Industrial LCD Displays , 1.45 inch micro lcd display PM - OLED
Univision UG - 6028GDEAF01 Industrial LCD Displays , 1.45 inch micro lcd display PM - OLED
Specifications
Brand Name :
Univision
Model Number :
UG-6028GDEAF01
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Univision
Panel Model :
UG-6028GDEAF01
Outline :
35.8×30.8×1.7 mm
Viewing Angle :
80/80/80/80 (Min.) (L/R/U/D)
Driver IC :
COF Built-in SEPS525
Contrast Ratio :
2000 : 1 (Typ.)
Description

Univision UG - 6028GDEAF01 Industrial LCD Displays , 1.45 inch micro lcd display PM - OLED

What Is Our Advantages

1. We are the professional supplier of the industrial LCD Screen Replacements,located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. As a result, our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

Univision UG-6028GDEAF01 General Features

Panel Size : 1.45 inch
Dot Resolution : 160(RGB)×128
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 141 PPI
Aspect Ratio : 5:4 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.06×0.18 mm (H×V)
Pixel Pitch : 0.18×0.18 mm (H×V)
Weight : 3.6g (Typ.)
Active Area : 28.78×23.024 mm (H×V)
Bezel Area : 30.78×25.024 mm (H×V)
Outline Dimension : 35.8×30.8 mm (H×V)
Outline Depth : 1.6±0.1 mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Univision UG-6028GDEAF01 Optical Features

Brightness : 100 cd/m² (Typ.)
Contrast Ratio : 2000 : 1 (Typ.)
Display Colors : 262K (6-bit)
Viewing Angle : 80/80/80/80 (Min.) (L/R/U/D)
Driver IC : COF Built-in SEPS525
Signal Interface : 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI , 35 pins
Input Voltage : 2.8/2.8/13V (Typ.)(VDD/VDDIO/VDDH)

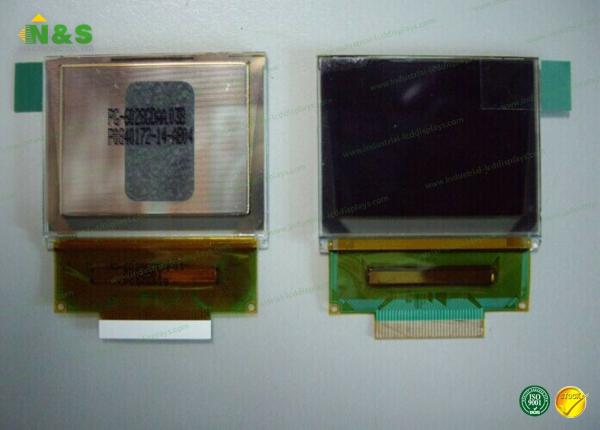

Details Pictures for UG-6028GDEAF01

Univision UG - 6028GDEAF01 Industrial LCD Displays , 1.45 inch micro lcd display PM - OLED
