AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare
AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare
AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare
AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare
Specifications
Brand Name :
Innolux LCD Panel
Model Number :
AT065TN14
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
INNOLUX
Panel Model :
AT065TN14
Panel Type :
a-Si TFT-LCD , Panel
Panel Size :
6.5 inch
Active Area :
143.4×76.7 mm
Outline :
155.2×89.4×5.7 mm
Surface :
Antiglare
Brightness :
400 cd/m² (Typ.)
Description

AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare

INNOLUX AT065TN14 General Features

Panel Brand : INNOLUX
Panel Model : AT065TN14
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 6.5 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 143.4×76.7 mm
Outline : 155.2×89.4×5.7 mm
Surface : Antiglare
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Dithering) , CIE1931 50%
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 3S8P WLED Without Driver
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)

INNOLUX AT065TN14 Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 400 cd/m² (Typ.)
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Dithering)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

Our Service

• Long lasting product cycle for continuity thru all phases of project rollouts and servicing

• Easy-to-install console, Open Frame chassis-mount display

• Slim dimensions enable better enclosure designs

• Multiple mounting options (100mm VESA mount and side brackets)

• All steel construction provides rugged frame for public use environments

• Two independent touch points (with Windows 7 OS)

• Improved power efficiency and reduced consumption

• TUV, CE, UL, CUL, FCC-B, RoHS, and IPX1 approvals

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.

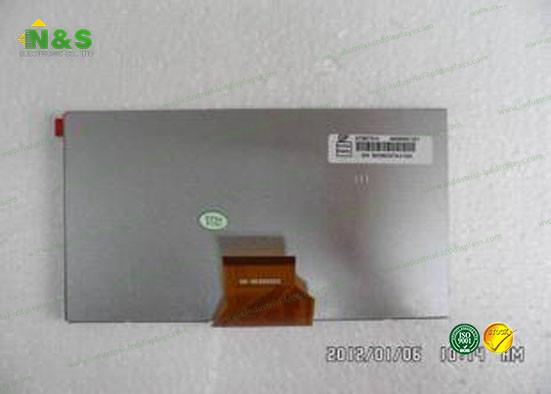

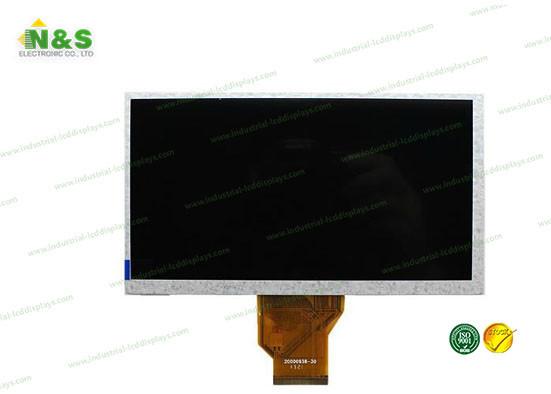

Details Pictures for Innolux LCD Panel AT065TN14

AT065TN14 6.5 inch industrial lcd display , laptop lcd screen Antiglare
