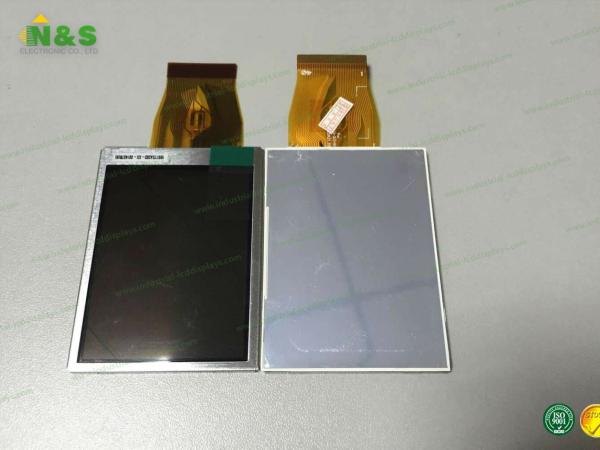

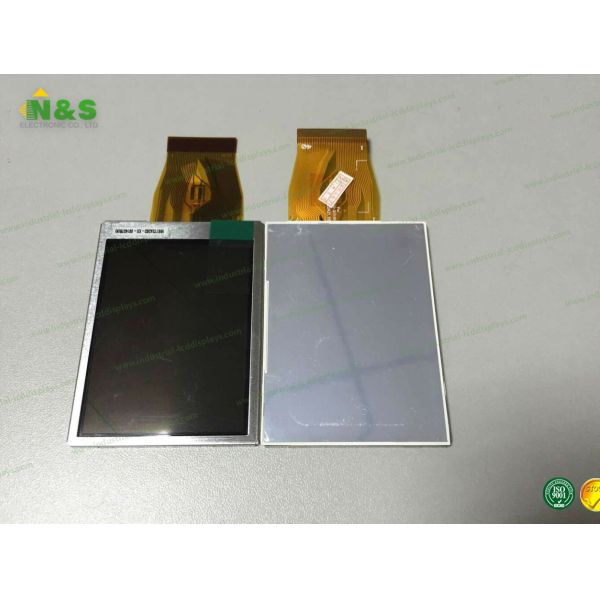

2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY
2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY
2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY
2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY
Specifications
Brand Name :
AUO LCD Display
Model Number :
A025DL02 V3
Certification :
ISO9001
Place of Origin :
Taiwan
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
2.5 inch
Resolution :
320(RGB)×240 , QVGA
Active Area :
50.4×37.8 mm
Outline :
60.73×45.07 mm
Surface :
Hard coating (3H)
Brightness :
230 cd/m² (Typ.)
Description

2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY

Competitive Advantage:

1. We are a leading manufacturer of LCD products for more than 10 years.

2, We got the ISO9001 quality management system certification.

3, We have our own R&D team, and accept OEM order as per customer’s design.

4, We are the 5-years four star member of Globalsources and the Three year Gold supplier in Alibaba.

5, Our main material LCD panels all are directly imported from Samsung and LG in Korea.

6, All products win the certificate of CE,CCC,FCC and RoHS.

7, Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 5 days.

8, 3-years warranty is offered.

AUO A025DL02 V3 Mechanical Features

Panel Brand : AUO
Panel Model : A025DL02 V3
Panel Type : LTPS TFT-LCD , Panel
Panel Size : 2.5 inch
Resolution : 320(RGB)×240 , QVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 50.4×37.8 mm
Outline : 60.73×45.07 mm
Surface : Hard coating (3H)
Brightness : 230 cd/m² (Typ.)
Contrast Ratio : 300:1 (Typ.)
Display Colors : 16.7M (8-bit)
Response Time : 15/20 (Typ.)(Tr/Td)
Viewing Angle : 50/50/20/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2S1P WLED Without Driver
Signal Interface : Serial RGB (8-bit) + SPI, CCIR656 , 40 pins
Input Voltage : 3.3/12/-5.3V (Typ.)(VCC/VGH/VGL)

Applications:

Mainly Used in Closed-Circuit Surveillance Systems

Car Video, PC Operating Systems

Vehicle Navigation Systems Supporting Display

Can Also be Applied for Industrial Automation

Medical Machine Equipments

Electric Power

Petrification

Monitor

Navigation

POS, ATM and Instrumentation Display Systems

2.5 Inch TN Normally White AUO LCD Panel , LTPS TFT LCD DISPALY
