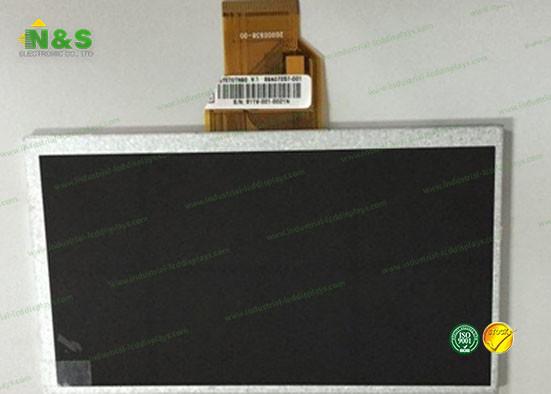

AT070TN90V.1 Chimei LCD Panel , 7 lcd monitor 800 × 480 Resolution
AT070TN90V.1 Chimei LCD Panel , 7 lcd monitor 800 × 480 Resolution
AT070TN90V.1 Chimei LCD Panel , 7 lcd monitor 800 × 480 Resolution
AT070TN90V.1 Chimei LCD Panel , 7 lcd monitor 800 × 480 Resolution
Specifications
Brand Name :
Chimei LCD Panel
Model Number :
AT070TN90V.1
Certification :
ISO9001
Place of Origin :
Japan，Korea
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Transmissivity :
5.11% (Typ.)(with Polarizer)
Contrast Ratio :
500:1 (Typ.)
Display Colors :
262K/16.7M (6-bit / 6-bit + Dithering)
Response Time :
10/15 (Typ.)(Tr/Td)
Panel Size :
7.0 inch
Panel Type :
a-Si TFT-LCD , CELL
Resolution :
800(RGB)×480 , WVGA
Display Mode :
TN, Normally White, Transmissive
Description

AT070TN90V.1 Chimei LCD Panel , 7 lcd monitor 800 × 480 Resolution

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
ED312TT2 E Ink 31.2" 2560×1440
ES133TE1 E Ink 13.3" 2200×1650
ES133TT2 E Ink 13.3" 2200×1650
ED133TT1 E Ink 13.3" 2200×1650
ED060SD1 E Ink 6.0" 600×800

Pls contact to us for more stock information: salespm@nselectronic.com.hk

CHIMEI INNOLUX AT070TN90 V.1 General Features

Panel Brand : CHIMEI INNOLUX
Panel Model : AT070TN90 V.1
Panel Type : a-Si TFT-LCD , CELL
Panel Size : 7.0 inch
Resolution : 800(RGB)×480 , WVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 154.08×85.92 mm
Outline : 162.5×96.62 mm
Surface : Antiglare
Glass Depth : 0.50+0.50 mm
Transmissivity : 5.11% (Typ.)(with Polarizer)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K/16.7M (6-bit / 6-bit + Dithering)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Signal Interface : Parallel RGB (1 ch, 8-bit) , 50 pins
Input Voltage : 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)


CHIMEI INNOLUX AT070TN90 V.1 Optical Features
Display Mode : TN, Normally White, Transmissive [[Panelook copyright, copy is strictly prohibited] IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA]
Brightness : 0 cd/m²
Contrast Ratio : 500 : 1 (Typ.) (Transmissive)
Display Color : 262K/16.7M (6-bit / 6-bit + Dithering)
Response Time : 10/15 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
Transmissivity : 5.11% (Typ.)(with Polarizer)

CHIMEI INNOLUX AT070TN90 V.1 Signal Interface

Signal Category : TTL
Signal Class : Parallel RGB (1 ch, 8-bit)
Input Voltage for Panel : 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
Input Current for Panel : 4.0/20/0.2/0.2mA (Typ.)(IDVDD/IAVDD/IGH/IGL)
Panel Power Consumption : 226mW (Typ.)
Voltage for Display Signals : 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Type : FPC
Signal Interface : Brand


We can do for you:
1. Provide excellent LCD screen replacements with competitive price.
2. Safe, quick and efficient supply chain.
3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
4. Your problems will be replied within 24 hours.
Keep pace with the times and mutual benefit is our philosophy. We expect being your purchasing assistant in the LCD Screen Panel Replacements area.
