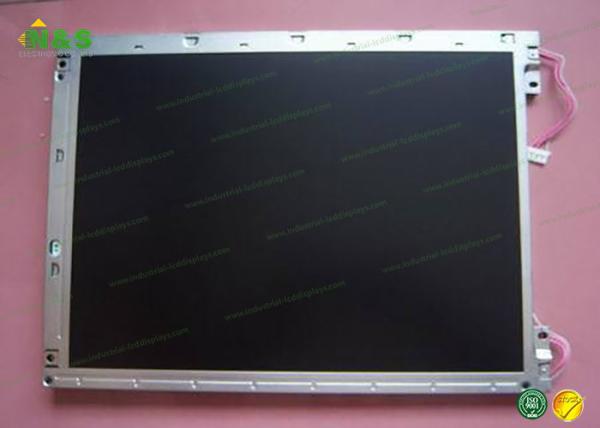

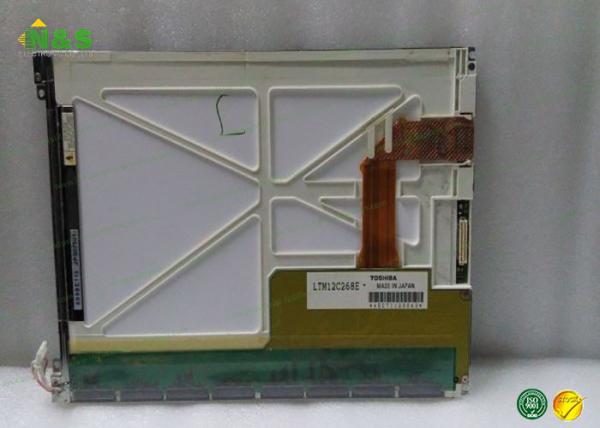

TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive
TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive
TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive
TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive
Specifications
Brand Name :
TORISAN LCD Displays
Model Number :
LTM12C268E
Certification :
ISO9001
Place of Origin :
Japan/Taiwan
MOQ :
1 piece
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
3000 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Dot Resolution :
800(RGB)×600 , SVGA
Panel Size :
12.1 inch
Contrast Ratio :
100:1 (Min.)
Brightness :
70 cd/m² (Typ.)
Pixel Density :
82PPI
Display Mode :
TN, Normally White, Transmissive
Pixel Configuration :
RGB Vertical Stripe
Form Factor :
Flat Rectangle Display
Description

TORISAN 800*600 LTM12C268E Industrial LCD Displays TN / Normally White / Transmissive

[Shipping & Delivery term]

1. We will ship all your order within 3 working days after receiving your payment. Otherwise, we will state it in the invoice in advance.

2. We can Ship via your shipping account (DHL / FEDEX / UPS / TNT or others) as your instruction. Or Ship via our shipping account (We have good relationship with DHL and FEDEX with very special freight).

TFT LCD Module series:

1. Our standard TFT LCD module size:

1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.

2. Our TFT LCD module brands:

NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

3. Transflective / sun readable TFT LCD.

4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.

Mechanical Features

Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Surface : Antiglare, Hard coating (3H)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 275×195 mm (H×V)
Outline Depth : 7.5 (Max.) mm
Holes & Brackets : Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

TOSHIBA LTM12C268E Optical Features

Display Mode : TN, Normally White, Transmissive
Brightness : 70 cd/m² (Typ.)
Contrast Ratio : 100 : 1 (Min.) (Transmissive)
Display Color : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 30/30/10/20 (Min.)(CR≥10) (L/R/U/D)
Viewing Direction : 6 o'clock
White color Chromaticity : Wx:0.330; Wy:0.350
White Variation : 1.81 (Max.)

TOSHIBA LTM12C268E General Features

Panel Brand : TOSHIBA
Panel Model : LTM12C268E
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 12.1 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 246×184.5 mm
Outline : 275×195×7.5 mm
Surface : Antiglare, Hard coating (3H)
Brightness : 70 cd/m² (Typ.)
Contrast Ratio : 100:1 (Min.)
Display Colors : 262K (6-bit)
Response Time : 50/50 (Max.)(Tr/Td)
Viewing Angle : 30/30/10/20 (Min.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 1 pcs CCFL Without Driver
Signal Interface : Parallel RGB (1 ch, 6-bit) , 41 pins
Input Voltage : 3.3V (Typ.)

Why Choose Us?

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in international trade for the LCD display sourcing.

6. Fabulous after-sale service.

7. The brand we could hand for the LCD Panel contained but not limited to AUO, Chimei, Hitachi, Innolux, KOE, Tianma, LG, NEC, Samsung, Sharp, Optrex and more other industrial LCD Screen.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LT065AC57400 TOSHIBA 6.5" 640×480
LT065AC57000 TOSHIBA 6.5" 640×480
LT057AC47200 TOSHIBA 5.7" 640×480
LT057AC47100 TOSHIBA 5.7" 640×480
LT057AA34E00 TOSHIBA 5.7" 320×240
