LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
Specifications
Brand Name :
LG Display
Model Number :
LM340UW1-SSA1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LM340UW1-SSA1
Panel Brand :
LG Display
Descrition :
3440×1440
Panel Type :
a-Si TFT-LCD
Active Area :
799.8×334.8 mm
Outline :
820.8×361×19.8 mm
Description

LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz

LM340UW1-SSA1 Basic Information

Panel Model LM340UW1-SSA1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,34 inch, 3440×1440
Panel Type a-Si TFT-LCD
Model Alias LM340UW1 (SS)(A1)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks Borderless, for LG monitor 34UM95

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

LM340UW1-SSA1 Mechanical Features

Dot Resolution 3440(RGB)×1440
Pixel Configuration RGB Vertical Stripe
Pixel Density 109 PPI
Aspect Ratio 21:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0775×0.2535 mm (H×V)
Pixel Pitch 0.2325×0.2325 mm (H×V)
Weight 3.71/3.90Kgs (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 799.8×334.8 mm (H×V)
Outline Dimension 820.8×361 mm (H×V)
Outline Depth 11.8/19.8 (Typ./Max.) mm
Holes & Brackets Rear mounting poles (13-M3)
Landscape or Portrait Landscape type
Touch Panel Without

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

LM340UW1-SSA1 Optical Features

Display Mode AH-IPS, Normally Black, Transmissive
Brightness 320 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 1.07B (8-bit + Hi-FRC)
Color Gamut 100% sRGB
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N

Why Choose US:

1. Prompt reply within 12 hours.

2. Understand inquiry in any language.

3. Products with top quality.

4. Very competitive prices.

5. 6-year experience in industrial LCD Screen replacements.

6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

7. Fabulous after-sale service.

LM340UW1-SSA1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 43.1W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LC490EGY-SHM3 LG Display 49" 3840×2160
LH550WF3-SH01 LG Display 5.5" 1080×1920
LC320DXY-SHA3 LG Display 31.5" 1366×768
LC490EQL-SHA2 LG Display 49" 3840×2160
LC430EQL-SHA2 LG Display 43" 3840×2160
LC430DUY-SHA2 LG Display 43" 1920×1080
LC550EGY-SHM2 LG Display 55" 3840×2160
LC320DXJ-SFA9 LG Display 31.5" 1366×768

We also have other industrial LCD panels, pls contact to us for the further information

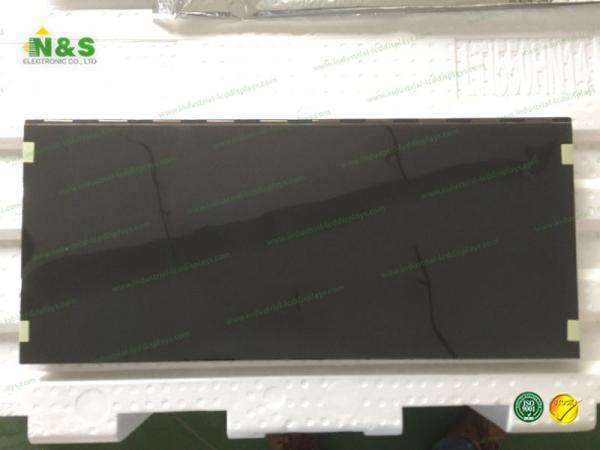

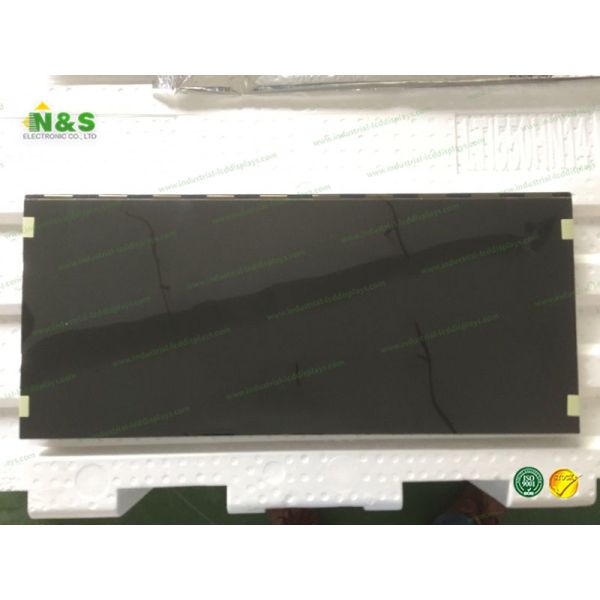

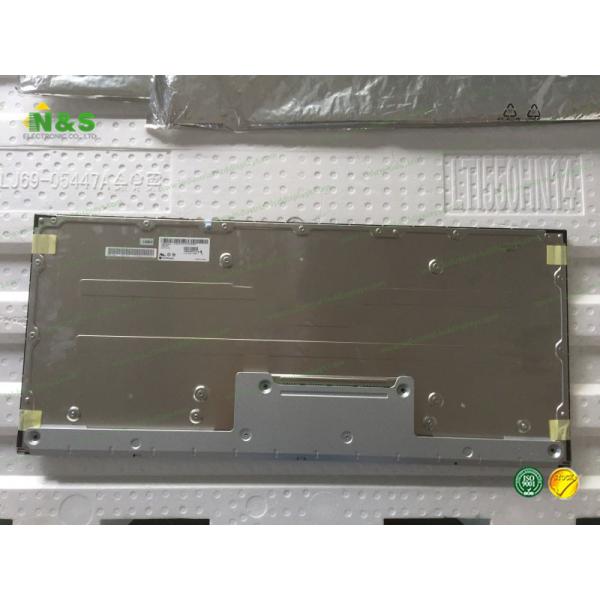

LM340UW1-SSA1 pictures

LM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60HzLM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60HzLM340UW1-SSA1 LG Display a-Si TFT-LCD ,34 inch, 3440×1440 for 60Hz
