19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
19.0 Inch LG Auo LCD Display 1280×1024 LB190E02-SL04 RGB Vertical Stripe Pixel
Specifications
Brand Name :
LG Display
Model Number :
LB190E02-SL04
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LB190E02-SL04
Panel Brand :
LG Display
Descrition :
1280×1024
Panel Type :
a-Si TFT-LCD
Active Area :
376.32×301.06 mm
Outline :
400×330×14.3 mm
Description

LB190E02-SL04 LG Display a-Si TFT-LCD ,19.0 inch, 1280×1024 for 60Hz

LB190E02-SL04 Basic Information

Panel Model LB190E02-SL04
Panel Brand LG Display
Descrition a-Si TFT-LCD ,19.0 inch, 1280×1024
Panel Type a-Si TFT-LCD
Model Alias LB190E02 (SL)(04)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

LB190E02-SL04 Mechanical Features

Dot Resolution 1280(RGB)×1024 (SXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 86 PPI
Aspect Ratio 5:4 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.098×0.294 mm (H×V)
Pixel Pitch 0.294×0.294 mm (H×V)
Weight 1.55/1.60Kgs (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 376.32×301.06 mm (H×V)
Bezel Area 380.3×305.0 mm (H×V)
Outline Dimension 400×330 mm (H×V)
Outline Depth 14.3 (Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

LB190E02-SL04 Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 700 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (Transmissive)
Display Color 16.7M (8-bit)
Color Gamut 72% NTSC (CIE1931)
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.280; Wy:0.310
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N

Excellent service on before-sale, on-sale and after-sale

1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

2.Your inquiry related to our products or prices will be replied in 24 hours.

3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.

LB190E02-SL04 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 24W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LD070WX5-SH01 LG Display 7.0" 900×1440
LH350WS1-SH01 LG Display 3.5" 640×960
LH400WV5-SH01 LG Display 4.0" 480×800
LD070WX4-SH01 LG Display 7.0" 800×1280
LH370WV3-SH01 LG Display 3.7" 480×800
LH500WX1-SD01 LG Display 5.0" 720×1280
LD070WX3-SH01 LG Display 7.0" 800×1280
LH154Q01-TH01 LG Display 1.54" 240×240

We also have other industrial LCD panels, pls contact to us for the further information

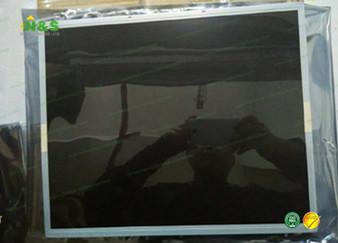

LB190E02-SL04 pictures
