LM270WF5-SLN2 LG Display AUO LCD Screen A-Si TFT-LCD Anti Glare Surface
LM270WF5-SLN2 LG Display AUO LCD Screen A-Si TFT-LCD Anti Glare Surface
Specifications
Brand Name :
LG Display
Model Number :
LM270WF5-SLN2
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LM270WF5-SLN2
Panel Brand :
LG Display
Descrition :
1920×1080
Panel Type :
a-Si TFT-LCD
Active Area :
597.888×336.312 mm
Outline :
630×368.2×12.2 mm
Description

LM270WF5-SLN2 LG Display a-Si TFT-LCD ,27.0 inch, 1920×1080 for 60Hz

LM270WF5-SLN2 Basic Information

Panel Model LM270WF5-SLN2
Panel Brand LG Display
Descrition a-Si TFT-LCD ,27.0 inch, 1920×1080
Panel Type a-Si TFT-LCD
Model Alias LM270WF5 (SL)(N2)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

LM270WF5-SLN2 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 81 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.1038×0.3114 mm (H×V)
Pixel Pitch 0.3114×0.3114 mm (H×V)
Weight 3.15/3.31Kgs (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 597.888×336.312 mm (H×V)
Bezel Area 602.0×340.4 mm (H×V)
Outline Dimension 630×368.2 mm (H×V)
Outline Depth 8.7/12.2 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

LM270WF5-SLN2 Optical Features

Display Mode S-IPS, Normally Black, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 16.7M (6-bit + Hi-FRC)
Color Gamut 72% NTSC (CIE1931)
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N

Why do you choose us?

• Quick response to clients' enquiries within 24hrs.

• More than 6-year experience in LCD screen field and professional team communication team.

•Value quality and long-term cooperation to reach win-win relationship.

LM270WF5-SLN2 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 19.7W (Typ.)

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH350H05-SH03 LG Display 3.5" 320×480
LH320H04-SH01 LG Display 3.2" 320×480
LH300WQ5-SH02 LG Display 3.0" 240×400
LH176J03-SH03 LG Display 1.8" 220×176
LH300WQ2-SH16 LG Display 3.0" 240×400
LH570WX2-SH01 LG Display 5.7" 720×1280
LC320DXY-SGA1 LG Display 31.5" 1366×768
LC320DXY-SJA1 LG Display 31.5" 1366×768

We also have other industrial LCD panels, pls contact to us for the further information

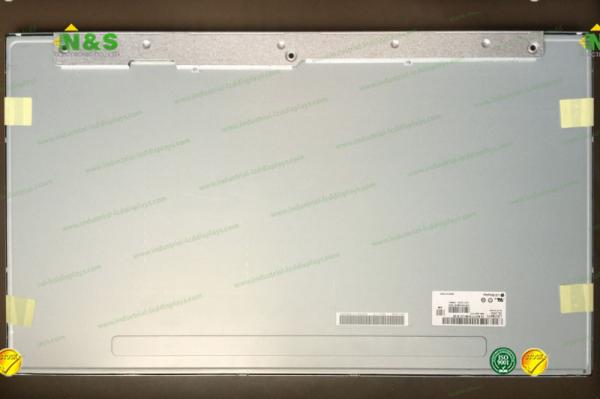

LM270WF5-SLN2 pictures
