LG Display A-Si TFT-LCD AUO LCD Panel 27.0 Inch 2560×1440 60Hz LM270WQ6-SSA1
LG Display A-Si TFT-LCD AUO LCD Panel 27.0 Inch 2560×1440 60Hz LM270WQ6-SSA1
LG Display A-Si TFT-LCD AUO LCD Panel 27.0 Inch 2560×1440 60Hz LM270WQ6-SSA1
LG Display A-Si TFT-LCD AUO LCD Panel 27.0 Inch 2560×1440 60Hz LM270WQ6-SSA1
Specifications
Brand Name :
LG Display
Model Number :
LM270WQ6-SSA1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LM270WQ6-SSA1
Panel Brand :
LG Display
Descrition :
2560×1440
Panel Type :
a-Si TFT-LCD
Active Area :
596.74×335.66 mm
Outline :
608.8×355.3×15 mm
Description



LM270WQ6-SSA1 LG Display a-Si TFT-LCD ,27.0 inch, 2560×1440 for 60Hz

LM270WQ6-SSA1 Basic Information

Panel Model LM270WQ6-SSA1
Panel Brand LG Display
Descrition a-Si TFT-LCD ,27.0 inch, 2560×1440
Panel Type a-Si TFT-LCD
Model Alias LM270WQ6 (SS)(A1)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks 27" QHD Neo I Adobe RGB (Dell); Borderless



Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

LM270WQ6-SSA1 Mechanical Features

Dot Resolution 2560(RGB)×1440 (Quad-HD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 108 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.077×0.231 mm (H×V)
Pixel Pitch 0.2331×0.2331 mm (H×V)
Weight 2.60Kgs
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 596.74×335.66 mm (H×V)
Outline Dimension 608.8×355.3 mm (H×V)
Outline Depth 11.5/15.0 (Typ./Max.) mm
Holes & Brackets Rear mounting holes (9-M3)
Landscape or Portrait Landscape type
Touch Panel Without



Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.
Feedback:

LM270WQ6-SSA1 Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color 1.07B (8-bit + Hi-FRC)
Color Gamut 109% NTSC (CIE1931)
Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33 (Max.)(9 points)
Sunlight Readable N



The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

LM270WQ6-SSA1 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No
Total Power Consumption 36.0W (Typ.)



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH470WX1-SH01 LG Display 4.7" 720×1280
LP079X01-SHA1 LG Display 7.9" 768×1024
LH380WV1-SH03 LG Display 3.8" 480×800
LH430WV3-SH03 LG Display 4.3" 480×800
LP133WP1-TJAA LG Display 13.3" 1440×900
LH550WX1-SH01 LG Display 5.5" 720×1280
LM270WQ1-SDFJ LG Display 27.0" 2560×1440
LH550M01-SH01 LG Display 5.5" 540×960


We also have other industrial LCD panels, pls contact to us for the further information

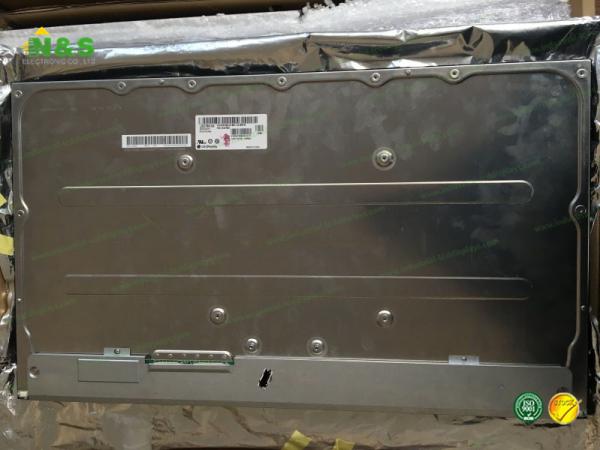

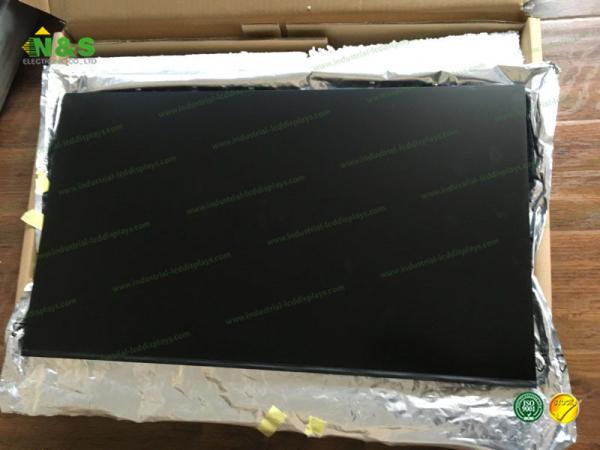

LM270WQ6-SSA1 pictures
