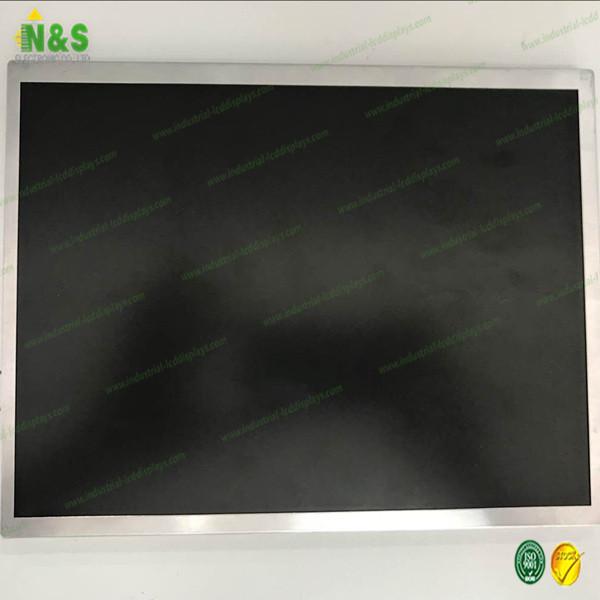

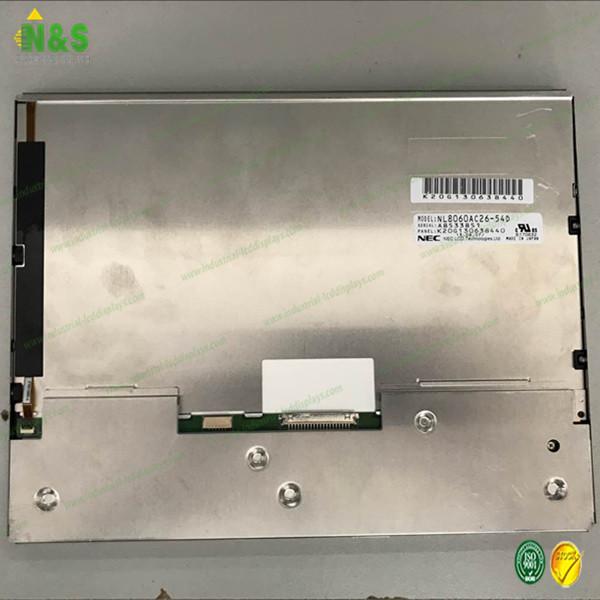

Normally White NL8060AC26-54D Normally White Lcd Screen module Outline 227.3×177.5×9.8 mm Contrast Ratio 900:1 (Typ.)
Normally White NL8060AC26-54D Normally White Lcd Screen module Outline 227.3×177.5×9.8 mm Contrast Ratio 900:1 (Typ.)
Normally White NL8060AC26-54D Normally White Lcd Screen module Outline 227.3×177.5×9.8 mm Contrast Ratio 900:1 (Typ.)
Normally White NL8060AC26-54D Normally White Lcd Screen module Outline 227.3×177.5×9.8 mm Contrast Ratio 900:1 (Typ.)
Specifications
Brand Name :
NLT
Model Number :
NL8060AC26-54D
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
10.4 inch
Resolution :
800(RGB)×600 (SVGA)
Contrast Ratio :
900:1 (Typ.)
Frequency :
60Hz
Response Time :
3/15 (Typ.)(Tr/Td)
Description

Normally White NL8060AC26-54D Normally White Lcd Screen module Outline 227.3×177.5×9.8 mm Contrast Ratio 900:1 (Typ.)


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

NL8060AC26-54D Basic Information

Panel Model NL8060AC26-54D
Panel Brand NLT
Descrition a-Si TFT-LCD ,10.4 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C

NL8060AC26-54D Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 96 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.088×0.264 mm (H×V)
Pixel Pitch 0.264×0.264 mm (H×V)
Weight 375g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 211.2×158.4 mm (H×V)
Bezel Area 215.4×161.8 mm (H×V)
Outline Dimension 227.3×177.5 mm (H×V)
Outline Depth 9.3±0.5 mm
Holes & Brackets Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAF047LC41 TXX CPT 4.7" 540×960
CLAG040LQ11 CPT 4.0" 480×800
C047SWA1-0 IVO 4.7" 720×1280
LC420DUJ-SGE3 LG Display 42" 1920×1080
HSD050BMW2-D00 HannStar 5.0" 540×960
C101NWWB-0 IVO 10.1" 1280×800
HSD035F8W2-A00 HannStar 3.5" 480×854
CLAG045LJ11 CPT 4.5" 480×854
CLAD027GJ01 00XD CPT 2.7" 320×240
