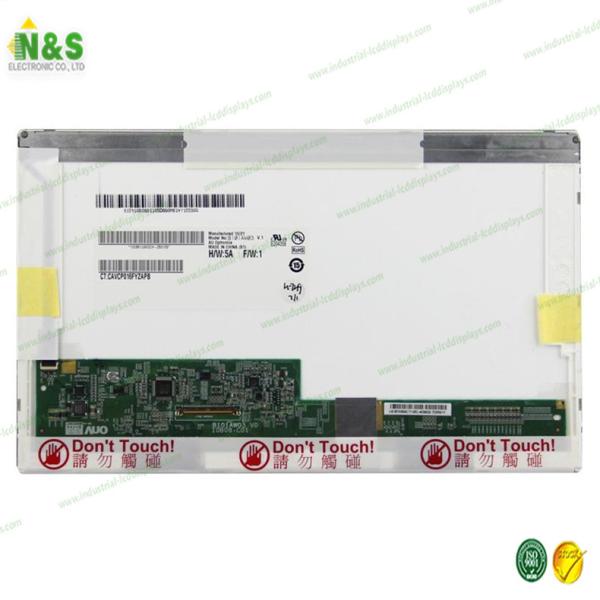

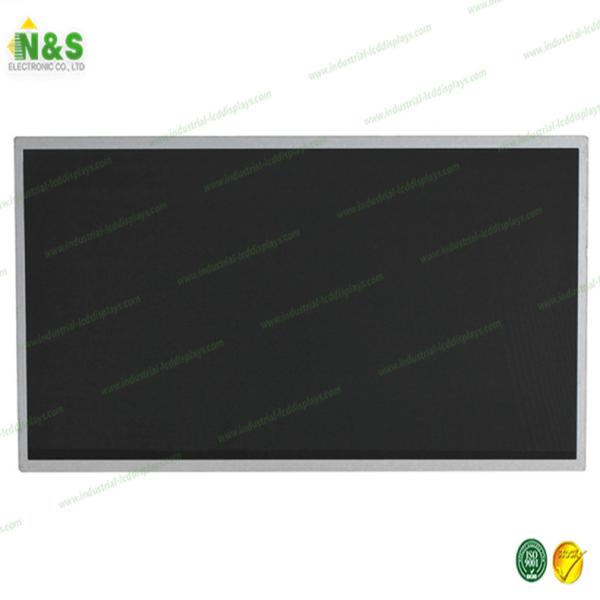

AUO B101AW03 V0 10.1 inch TFT LCD Panel 1024×600 Active Area 222.72×125.28 mm
AUO B101AW03 V0 10.1 inch TFT LCD Panel 1024×600 Active Area 222.72×125.28 mm
AUO B101AW03 V0 10.1 inch TFT LCD Panel 1024×600 Active Area 222.72×125.28 mm
AUO B101AW03 V0 10.1 inch TFT LCD Panel 1024×600 Active Area 222.72×125.28 mm
Specifications
Brand Name :
AUO
Model Number :
B101AW03 V0
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
B101AW03 V0
Panel Type :
a-Si TFT-LCD
Resolution :
1024×600
Panel Size :
10.1 inch
Contrast Ratio :
400:1 (Typ.)
Input Voltage :
3.3V (Typ.)
Description

Normally White AUO B101AW03 V0 10.1 inch TFT-LCD Panel Screen resolution 1024×600 Active Area 222.72×125.28 mm

B101AW03 V0 Basic Information

Panel Model B101AW03 V0
Panel Brand AUO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Model Alias B101AW03 V.0
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

B101AW03 V0 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 190g (Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 222.72×125.28 mm (H×V)
Bezel Area 224.72×127.28 mm (H×V)
Outline Dimension 235×143.5 mm (H×V)
Outline Depth 5.2 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

B101AW03 V0 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 16 (Typ.)(Tr+Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.60 (Max.)(5/13 points)
Sunlight Readable N

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Packing & Delivery for our LCD Screen Panel Replacements:

  1. Anti-static Bag Packing.
  2. Anti-Shock Bubble Bag Packing
  3. Foam and Hard Carton Packing
  4. Picked up by forward and delivered by express services.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T500HVN08.2 CELL AUO 50" 1920×1080
M195XTN01.0 CELL AUO 19.5" 1366×768
H347QTN01.0 AUO 3.5" 320×480
H515DAN01.0 AUO 5.2" 1080×1920
H499TAN03.1 AUO 5.0" 720×1280
G150XG03 V3 CELL AUO 15.0" 1024×768
B080XAN03.1 CELL AUO 7.9" 768×1024
H572DAN01.2 AUO 5.7" 1080×1920
H598AAN01.0 AUO 6.0" 540×960
H497DAN01.1 AUO 5.0" 1080×1920
H650DAN01.0 AUO 6.4" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
