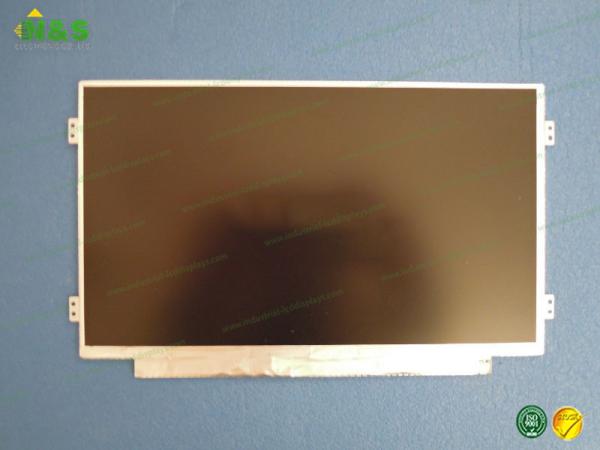

White AUO LCD Panel B101AW06 V4 10.1 inch 1024×600 Outline 243×146.5×3.6 mm
White AUO LCD Panel B101AW06 V4 10.1 inch 1024×600 Outline 243×146.5×3.6 mm
Specifications
Brand Name :
AUO
Model Number :
B101AW06 V4
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
10.1 inch
Resolution :
1024×600
Surface :
Clear, Hard coating (3H)
Active Area :
222.72×125.28 mm
Outline :
243×146.5×3.6 mm
Input Voltage :
3.3V (Typ.)
Description

Normally White B101AW06 V4 10.1 inch 1024×600 Outline 243×146.5×3.6 mm Contrast Ratio 400:1 (Typ.) new and original


Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

B101AW06 V4 Basic Information

Panel Model B101AW06 V4
Panel Brand AUO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Model Alias B101AW06 V.4
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

B101AW06 V4 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 175g (Max.)
Surface Antiglare
Active Area 222.72×125.28 mm (H×V)
Bezel Area 225.72×128.28 mm (H×V)
Outline Dimension 243×146.5 mm (H×V)
Outline Depth 3.6 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (8 pcs) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without

B101AW06 V4 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 9/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.60 (Max.)(5/13 points)
Sunlight Readable N

FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:
Panel Model Brand Size Resolution
TM030CFH11 Tianma 3.0" 320×240
M320QAN01.1 CELL AUO 32.0" 3840×2160
M270HVN02.0 CELL AUO 27.0" 1920×1080
M270HTN01.1 CELL AUO 27.0" 1920×1080
B116XAN03.0 CELL AUO 11.6" 1366×768
M215HTN01.3 CELL AUO 21.5" 1920×1080
M190PW01 V8 CELL AUO 19.0" 1440×900
H380VW01 V0 AUO 3.8" 480×800
A030DTN01.1 AUO 3.0" 320×240
H466AAN01.0 AUO 4.7" 540×960
H402VVN01.3 AUO 4.0" 480×854
