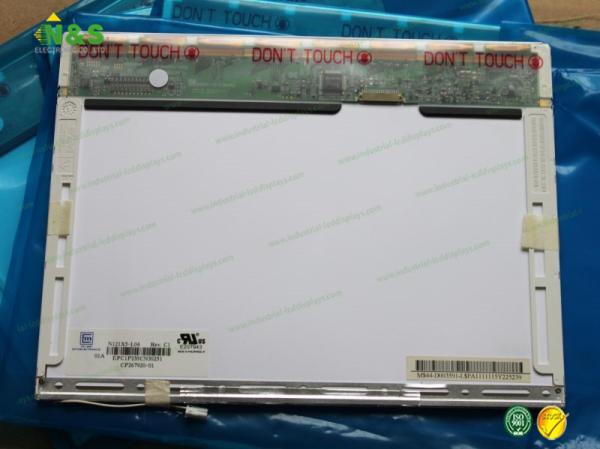

COM N121X5-L04 12.1 inch 245.76×184.32 mm Active Area Surface Antiglare (Haze 25%), Hard coating (3H)
COM N121X5-L04 12.1 inch 245.76×184.32 mm Active Area Surface Antiglare (Haze 25%), Hard coating (3H)
Specifications
Brand Name :
COM
Model Number :
N121X5-L04
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
12.1 inch
Resolution :
1024×768
Outline :
261×198×5 mm
Contrast Ratio :
500:1 (Typ.)
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Description

COM N121X5-L04 12.1 inch 245.76×184.32 mm Active Area Surface Antiglare (Haze 25%), Hard coating (3H)

N121X5-L04 Basic Information

Panel Model N121X5-L04
Panel Brand CMO
Descrition a-Si TFT-LCD ,12.1 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

N121X5-L04 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 105 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.080×0.240 mm (H×V)
Pixel Pitch 0.240×0.240 mm (H×V)
Weight 240g (Typ.)
Surface Antiglare (Haze 25%), Hard coating (3H)
Active Area 245.76×184.32 mm (H×V)
Bezel Area 250.5×188.9 mm (H×V)
Outline Dimension 261×198 mm (H×V)
Outline Depth 4.7/5.0 (Typ./Max.) mm
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

N121X5-L04 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 175 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 5/11 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25 (Max.)(5 points)
Sunlight Readable N

BOE BP080WX7-100 Optical Features

Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HV550QUB-B10 BOE 55" 3840×2160
TL050JGXP01 Tianma 5.0" 720×1280
LH499WX1-SH01 LG Display 5.0" 720×1280
HSD045F8W1-C01 HannStar 4.5" 480×854
H160QVN01.0 AUO 1.6" 320×320
LSN133DL01-A02 Samsung 13.3" 2560×1600
LM195WD1-TJBA LG Display 19.5" 1600×900
LSC480HN08 Samsung 48" 1920×1080
TM050JYHP05 Tianma 5.0" 720×1280
F050A13-601 Innolux 5.0" 720×1280

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Plastic Trays Inside

2. Layers of cartons

3. Fragile Sign on top.

4. Can be customized.
