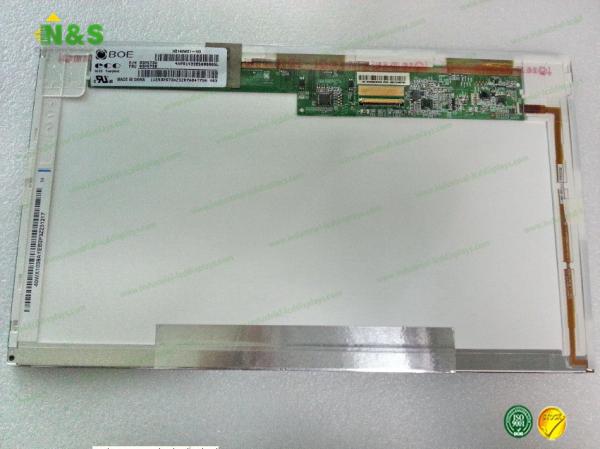

Normally White M140NWR4 R1 14.0 inch Display Mode Active Area 309.399×173.952 mm new and original in stock
Normally White M140NWR4 R1 14.0 inch Display Mode Active Area 309.399×173.952 mm new and original in stock
Specifications
Brand Name :
IVO
Model Number :
M140NWR4 R1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
IVO
Active Area :
309.399×173.952 mm
Outline :
320.9×205.6×3.6 mm
Surface :
Antiglare
Contrast Ratio :
500:1 (Typ.)
Frequency :
60Hz
Description

Normally White M140NWR4 R1 14.0 inch Display Mode Active Area 309.399×173.952 mm new and original in stock

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
C116NWR5-0 IVO 11.6" 1366×768
C024SN21-1 IVO 2.4" 240×320
C055SWF5-0 IVO 5.5" 1080×1920
C050SWA6-3 IVO 5.0" 720×1280
C050SWYG-0 IVO 5.0" 480×854
C050SWYD-2 IVO 5.0" 480×854
C054SWN1-2 IVO 5.4" 540×960
C050SWAF-0 IVO 5.0" 720×1280
C050SWZ3-1 IVO 5.0" 540×960
C017SN81-0 IVO 1.8" 128×160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

M140NWR4 R1 Basic Information

Panel Model M140NWR4 R1
Panel Brand IVO
Descrition a-Si TFT-LCD ,14.0 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

M140NWR4 R1 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 112 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0755×0.2265 mm (H×V)
Pixel Pitch 0.2265×0.2265 mm (H×V)
Weight 330g (Max.)
Surface Antiglare
Active Area 309.399×173.952 mm (H×V)
Outline Dimension 320.9×205.6 mm (H×V)
Outline Depth 3.6 (Max.) mm
Shape Style Flat (PCBA Flat, Depth 3.4~4.0mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without

M140NWR4 R1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 8 (Typ.)(Tr+Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.49 (Max.)(5/13 points)
Sunlight Readable N
