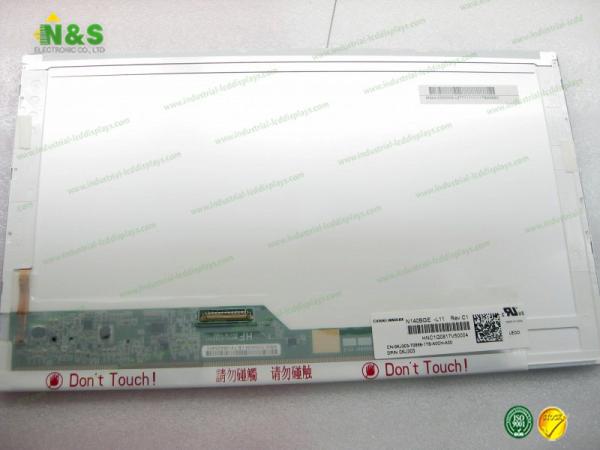

N140BGE-L11 14.0 inch Innolux LCD Panel 323.5×192×5.2 mm Outline , Landscape type
N140BGE-L11 14.0 inch Innolux LCD Panel 323.5×192×5.2 mm Outline , Landscape type
Specifications
Brand Name :
INNOLUX
Model Number :
N140BGE-L11
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
14.0 inch
Resolution :
1366×768
Outline :
323.5×192×5.2 mm
Contrast Ratio :
500:1 (Typ.)
Surface :
Antiglare, Hard coating (3H)
Description

Normally White N140BGE-L11 14.0 inch Outline 323.5×192×5.2 mm 1366×768 resolution Surface Antiglare, Hard coating (3H)

N140BGE-L11 Basic Information

Panel Model N140BGE-L11
Panel Brand CHIMEI INNOLUX
Descrition a-Si TFT-LCD ,14.0 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

N140BGE-L11 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 112 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0755×0.2265 mm (H×V)
Pixel Pitch 0.2265×0.2265 mm (H×V)
Weight 335/350g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 309.399×173.952 mm (H×V)
Bezel Area 312.80×177.36 mm (H×V)
Outline Dimension 323.5×192 mm (H×V)
Outline Depth 5.2 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

N140BGE-L11 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 3/8 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable N

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Guarantee:

(1) All items will be strictly tested and shipped with safe & professional package.

(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

(3) We will do our best to solve any possible problem for your after sale. Please contact to us.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HE080IA-01D Innolux 8.0" 1024×768
HE070IA-04F Innolux 7.0" 800×1280
N173FGE-P23 Innolux 17.3" 1600×900
N116BGE-P32 Innolux 11.6" 1366×768
N116BGE-P42 Innolux 11.6" 1366×768
M220ZGE-P01 Innolux 22.0" 1680×1050
V236BJ1-P01 Innolux 23.6" 1366×768
CT024TN01 V.X Innolux 2.4" 240×320
M215HGE-P02 Innolux 21.5" 1920×1080
F03003-05L Innolux 3.0" 320×240
EE027NA-02A Innolux 2.7" 320×240

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
