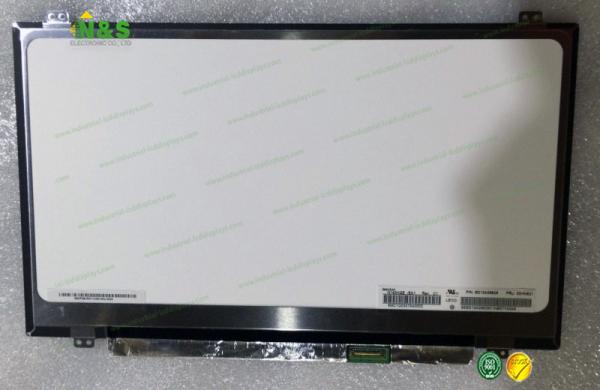

New And Original Innolux LCD Panel , N140HGE-EA1 14 Inch Lcd Screen Panel
New And Original Innolux LCD Panel , N140HGE-EA1 14 Inch Lcd Screen Panel
New And Original Innolux LCD Panel , N140HGE-EA1 14 Inch Lcd Screen Panel
New And Original Innolux LCD Panel , N140HGE-EA1 14 Inch Lcd Screen Panel
Specifications
Brand Name :
INNOLUX
Model Number :
N140HGE-EA1
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
14.0 inch
Resolution :
1920×1080
Outline :
320.4×187.1×3 mm
Contrast Ratio :
500:1 (Typ.)
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Description

New and original N140HGE-EA1 Innolux 14.0 inch, 1920×1080 Active Area 309.14×173.89 mm Frequency 60Hz


Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.

N140HGE-EA1 Basic Information

Panel Model N140HGE-EA1
Panel Brand INNOLUX
Descrition a-Si TFT-LCD ,14.0 inch, 1920×1080
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks eDP1.2

N140HGE-EA1 Mechanical Features

Dot Resolution 1920(RGB)×1080 (FHD)
Pixel Configuration RGB Vertical Stripe
Pixel Density 157 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.054×0.161 mm (H×V)
Pixel Pitch 0.161×0.161 mm (H×V)
Weight 260/270g (Typ./Max.)
Surface Antiglare (Haze 24%), Hard coating (3H)
Active Area 309.14×173.89 mm (H×V)
Outline Dimension 320.4×187.1 mm (H×V)
Outline Depth 3.0 (Max.) mm
Shape Style Slim (PCBA Flat, Depth ≤3.2mm)
Holes & Brackets Face mounting holes (8 pcs) on up, down slugs
Landscape or Portrait Landscape type
Touch Panel Without

N140HGE-EA1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 60% NTSC (CIE1931)
Response Time 3/7 (Typ.)(Tr/Td)
Viewing Angle 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.54 (Max.)(5/13 points)
Sunlight Readable N

Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M236HGE-P02 Innolux 23.6" 1920×1080
M215HGE-P03 Innolux 21.5" 1920×1080
V236H3-PS1 Innolux 23.6" 1920×1080
HE050NA-01F Innolux 5.0" 800×480
M236HGE-P01 Innolux 23.6" 1920×1080
M215HGE-P01 Innolux 21.5" 1920×1080
AT070TN90 Innolux 7.0" 800×480
PH030NA-04A Innolux 3.0" 240×400
EE090NA-01C Innolux 9.0" 1280×800
EE080NA-06A Innolux 8.0" 800×600
AT080TN60 Innolux 8.0" 800×480
