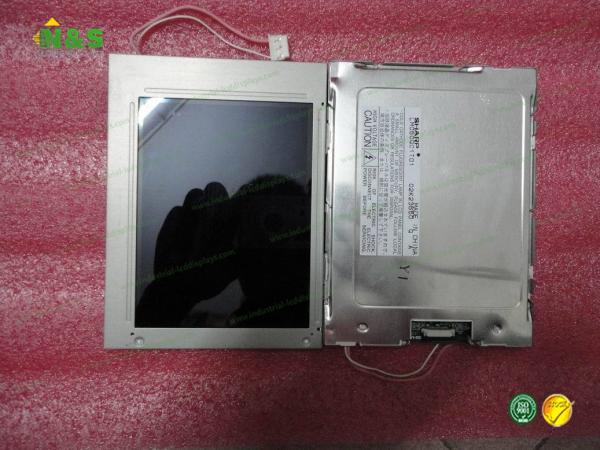

Normally Black LM050QC1T01 5.0 inch lcd module 320×240 resolution Outline 134×100 mm Lamp Type 1 pcs CCFL Without Driver
Normally Black LM050QC1T01 5.0 inch lcd module 320×240 resolution Outline 134×100 mm Lamp Type 1 pcs CCFL Without Driver
Specifications
Brand Name :
SHARP
Model Number :
LM050QC1T01
Certification :
ISO9001
Place of Origin :
Japan,Korea
MOQ :
1 piece
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
100 PCS PER DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
CSTN-LCD
Panel Size :
5.0 inch
Resolution :
320×240
Contrast Ratio :
30:1 (Typ.)
Display Colors :
Color
Outline :
134×100 mm
Brightness :
100 cd/m² (Typ.)
Lamp Type :
CCFL
Description

Normally Black LM050QC1T01 5.0 inch lcd module 320×240 resolution Outline 134×100 mm Lamp Type 1 pcs CCFL Without Driver

LM050QC1T01 Basic Information

Panel Model LM050QC1T01
Panel Brand SHARP
Descrition CSTN-LCD ,5.0 inch, 320×240
Panel Type CSTN-LCD
Operating Temperature 0 ~ 40 °C
Storage Temperature -20 ~ 60 °C

LM050QC1T01 Optical Features

Display Mode STN, Normally Black, Transmissive
Brightness 100 cd/m² (Typ.)
Contrast Ratio 30 : 1 (Typ.) (Transmissive)
Display Color Color ()
Response Time 230/120 (Typ.)(Tr/Td)
Viewing Angle 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D)
White color Chromaticity Wx:0.310; Wy:0.340
Sunlight Readable N

LM050QC1T01 Mechanical Features

Dot Resolution 320(RGB)×240 (QVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 80 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.105×0.315 mm (H×V)
Pixel Pitch 0.315×0.315 mm (H×V)
Weight 145g
Active Area 100.775×75.575 mm (H×V)
Bezel Area 105.2×80.0 mm (H×V)
Outline Dimension 134×100 mm (H×V)
Outline Depth 8.5 mm
Landscape or Portrait Landscape type
Touch Panel Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LK315T3HC1K SHARP 31.5" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440
LQ047K3SX04 SHARP 4.7" 720×1280
LS024Q8UC92 SHARP 2.4" 240×320

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

We Can DO for You

1. Quality ensurance

100% original new and A grade,

You can enjoy the real panels directly from original factory;

2. Fast reply:

Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.

3. Delivery ensurance:

Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.

4. After-Sale Service:

Professional support team to provide effective service, we are young and full of passion!

5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.

We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.

6. Competitive quotation:

We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.

Packaging & Shipping

1. We will ship the products within 15 workdays after receipt of payment.

2. We can ship to you by UPS/FEDEX/DHL and so on.

Other shipping terms can also be arranged according to specific requirements.
