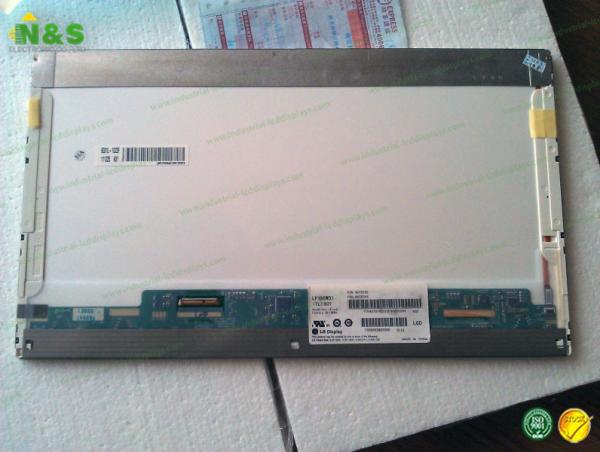

TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
TFT LCD Module / LG LCD Panel Display Normally White 1600×900 resolution LP156WD1-TLB2
Specifications
Brand Name :
LG Display
Model Number :
LP156WD1-TLB2
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
15.6 inch
Resolution :
1600×900
Surface :
Antiglare, Hard coating (3H)
Active Area :
344.16×193.59 mm
Outline :
359.3×209.5×5.7 mm
Description

New and original LP156WD1-TLB2 TFT LCD Module LG Display with Normally White 1600×900 resolution

LP156WD1-TLB2 Basic Information

Panel Model LP156WD1-TLB2
Panel Brand LG Display
Descrition a-Si TFT-LCD ,15.6 inch, 1600×900
Panel Type a-Si TFT-LCD
Model Alias LP156WD1 (TL)(B2)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks for Lenovo P/N:42T0742, RFU:42T0743

LP156WD1-TLB2 Mechanical Features

Dot Resolution 1600(RGB)×900 (HD+)
Pixel Configuration RGB Vertical Stripe
Pixel Density 118 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0717×0.2151 mm (H×V)
Pixel Pitch 0.2151×0.2151 mm (H×V)
Weight 450/470g (Typ./Max.)
Surface Antiglare, Hard coating (3H)
Active Area 344.16×193.59 mm (H×V)
Bezel Area 349.8×197.1 mm (H×V)
Outline Dimension 359.3×209.5 mm (H×V)
Outline Depth 5.7 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

What’s our advantage compared with other suppliers?

(1). Before shipment, we will test every LCD Screen and ensure the quality.

(2). we provide high quality lcd panels for customers all over the world.

(3) .We have DBS, ISO9001 Certifications for our Panels.

(4) .Excellent service on before-sale, on-sale and after-sale.

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LD070WX7-SH01 LG Display 7.0" 800×1280
LD070WS2-SH02 LG Display 7.0" 1024×600
LA070WV1-TH01 LG Display 7.0" 800×480
LH550WX1-SH02 LG Display 5.5" 720×1280
LD079X01-SHC4 LG Display 7.9" 768×1024
LH470WX3-SH01 LG Display 4.7" 720×1280
LC550EUJ-FFK1 LG Display 55" 1920×1080
LH520WF1-SH01 LG Display 5.2" 1080×1920
LC490DUJ-SGK1 LG Display 49" 1920×1080
LC490DUJ-SGE1 LG Display 49" 1920×1080

Pls contact to us for more stock information: salespm@nselectronic.com.hk
