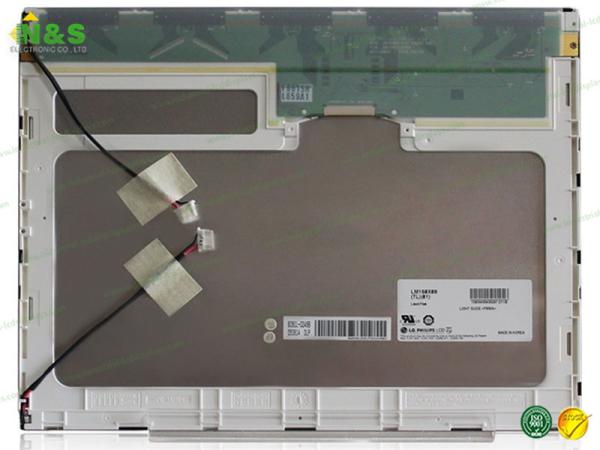

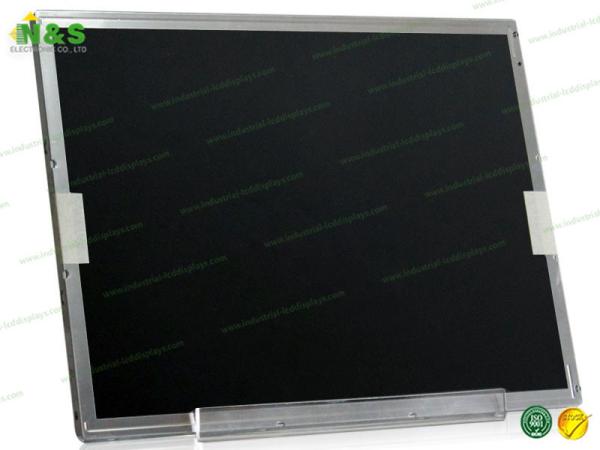

LM150X08-TL01 15.0 Inch LG LCD Display 1024×768 TFT LCD Module Surface Antiglare
LM150X08-TL01 15.0 Inch LG LCD Display 1024×768 TFT LCD Module Surface Antiglare
LM150X08-TL01 15.0 Inch LG LCD Display 1024×768 TFT LCD Module Surface Antiglare
LM150X08-TL01 15.0 Inch LG LCD Display 1024×768 TFT LCD Module Surface Antiglare
Specifications
Brand Name :
LG Display
Model Number :
LM150X08-TL01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
15.0 inch
Resolution :
1024×768
Contrast Ratio :
450:1 (Typ.)
Outline :
326.5×253.5×11.7 mm
Frequency :
60Hz
Description

LM150X08-TL01 15.0 inch LG Display 1024×768 TFT LCD MODULE Surface Antiglare (Haze 13%), Hard coating (3H)

LM150X08-TL01 Basic Information

Panel Model LM150X08-TL01
Panel Brand LG. LCD
Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type a-Si TFT-LCD
Model Alias LM150X08 (TL)(01)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

LM150X08-TL01 Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 85 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.099×0.297 mm (H×V)
Pixel Pitch 0.297×0.297 mm (H×V)
Weight 1.00Kgs (Typ.)
Surface Antiglare (Haze 13%), Hard coating (3H)
Active Area 304.128×228.096 mm (H×V)
Bezel Area 307.4×231.3 mm (H×V)
Outline Dimension 326.5×253.5 mm (H×V)
Outline Depth 11.2±0.5 mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

LM150X08-TL01 Backlight System

Lamp Position Edge light type (Top and Bottom)
Lamp Type CCFL
Lamp Amount 2 pcs
Lamp Shape Straight
Lamp Life Time 40K(Min.) (Hours)
Lamp Voltage 550/560/650V (Min./Typ./Max.)
Lamp Current 3.0/8.0/9.0mA (Min./Typ./Max.)
Lamp Operating Frequency 45/60/80KHz (Min./Typ./Max.)
Lamp Startup Voltage 850/1100V (Max.)(Ta=+25/0℃)
Lamps Power Consumption 8.96/9.86W (Typ./Max.)
Interface Type Connector
Lamp Driver Board No

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LD070WX7-SH01 LG Display 7.0" 800×1280
LD070WS2-SH02 LG Display 7.0" 1024×600
LA070WV1-TH01 LG Display 7.0" 800×480
LH550WX1-SH02 LG Display 5.5" 720×1280
LD079X01-SHC4 LG Display 7.9" 768×1024
LH470WX3-SH01 LG Display 4.7" 720×1280
LC550EUJ-FFK1 LG Display 55" 1920×1080
LH520WF1-SH01 LG Display 5.2" 1080×1920
LC490DUJ-SGK1 LG Display 49" 1920×1080
LC490DUJ-SGE1 LG Display 49" 1920×1080

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
