LD070WS2-SL05 a-Si TFT LG LCD Display 7.0 inch 1024×600 Display Colors 262K (6-bit)
LD070WS2-SL05 a-Si TFT LG LCD Display 7.0 inch 1024×600 Display Colors 262K (6-bit)
Specifications
Brand Name :
LG Display
Model Number :
LD070WS2-SL05
Certification :
CE
Place of Origin :
JAPAN
MOQ :
1 Piece
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Active Area :
153.6×90 mm
Outline :
162.8×102.9×4.17 mm
Surface :
Hard coating (3H)
Panel Size :
7.0 inch
Resolution :
1024×600
Description

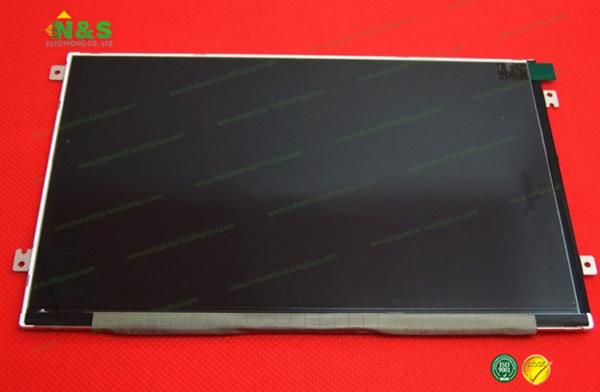

LD070WS2-SL05 LG Display a-Si TFT-LCD ,7.0 inch, 1024×600 Display Colors 262K (6-bit) Active Area 245.7×184.275 mm

LD070WS2-SL05 Basic Information

Panel Model LD070WS2-SL05
Panel Brand LG Display
Descrition a-Si TFT-LCD ,7.0 inch, 1024×600
Panel Type a-Si TFT-LCD
Model Alias LD070WS2 (SL)(05)
Operating Temperature -10 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Remarks Nichia LED/S-LED

LD070WS2-SL05 Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 169 PPI
Aspect Ratio 17:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.050×0.150 mm (H×V)
Pixel Pitch 0.150×0.150 mm (H×V)
Weight 94/98g (Typ./Max.)
Surface Hard coating (3H)
Active Area 153.6×90 mm (H×V)
Outline Dimension 162.8×102.9 mm (H×V)
Outline Depth 2.47/4.17 (Typ./Max.) mm
Holes & Brackets Face mounting holes (4-Φ1.8) on left, right slugs
Landscape or Portrait Landscape type
Touch Panel Without

Company information:

About Us:


N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!

LD070WS2-SL05 Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 400 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Response Time 50 (Max.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.310; Wy:0.340
White Variation 1.25/1.43 (Typ./max.)(9 points)
Sunlight Readable N

Feature:
1) 100% Brand New and never used Touch Screen Digitizer.
2) Tested before shipping and 100% working well.
3) Delivery in 3 working days after payment confirmed.
4) Excellent after-sale service.
5) Great replacements for your LCD panels’ sourcing replenishment.
6) Each screen will be tested before shipping and 100% working guarantee.

Our Services

1. Sample all in one computer is available for your evaluation. The lead time for sample is 5-7days.

2. Fully customizable for the outlook and some functions.

3. 1 year quality warranty, perfect after-sell service.

Our website lists just some of the products we have

successfully supplied,but please note this is just

representative and an example of our products&service,

so,if you cannot see the product you are looking for, please contact us today!!!

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LH430WV3-SH02 LG Display 4.3" 480×800
LP156WH6-TJA1 LG Display 15.6" 1366×768
LH400WV3-SH04 LG Display 4.0" 480×800
LH350H05-SH01 LG Display 3.5" 320×480
LH430WV1-SH01 LG Display 4.3" 480×800
LH320WV4-SD11 LG Display 3.2" 480×854
LH320WV4-SH01 LG Display 3.2" 480×854
LH350H02-FH02 LG Display 3.5" 320×480
LH350H02-FH01 LG Display 3.5" 320×480
LH350H01-FH01 LG Display 3.5" 320×480
