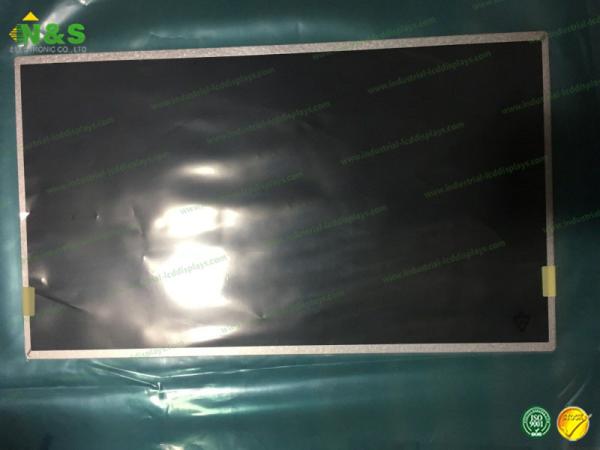

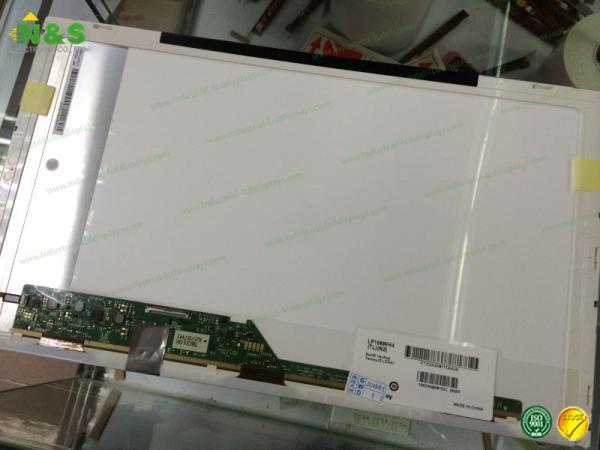

LP156WH4-TLN2 15.6 inch LG LCD Panel Lamp Type 4 strings WLED Embedded (LED Driver)
LP156WH4-TLN2 15.6 inch LG LCD Panel Lamp Type 4 strings WLED Embedded (LED Driver)
LP156WH4-TLN2 15.6 inch LG LCD Panel Lamp Type 4 strings WLED Embedded (LED Driver)
LP156WH4-TLN2 15.6 inch LG LCD Panel Lamp Type 4 strings WLED Embedded (LED Driver)
Specifications
Brand Name :
LG Display
Model Number :
LP156WH4-TLN2
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD
Panel Size :
15.6 inch
Resolution :
1366×768
Active Area :
344.232×193.536 mm
Outline :
359.3×209.5×5.5 mm
Display Mode :
TN, Normally White, Transmissive
Description

LP156WH4-TLN2 15.6 inch Outline 359.3×209.5×5.5 mm Lamp Type 4 strings WLED Embedded (LED Driver)

LP156WH4-TLN2 Basic Information

Panel Model LP156WH4-TLN2
Panel Brand LG Display
Descrition a-Si TFT-LCD ,15.6 inch, 1366×768
Panel Type a-Si TFT-LCD
Model Alias LP156WH4 (TL)(N2)
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C

LP156WH4-TLN2 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 100 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.084×0.252 mm (H×V)
Pixel Pitch 0.252×0.252 mm (H×V)
Weight 420g (Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 344.232×193.536 mm (H×V)
Bezel Area 350.0×197.1 mm (H×V)
Outline Dimension 359.3×209.5 mm (H×V)
Outline Depth 5.5 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (8-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

FAQ

Q1: What's the quality of your Hard Disk?

A: Various brands for hard disk etc. We are available to meet your different requirements.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.

Q4: How long is the lead time?

A: The lead time is about 2-3 working days after receipt of payment.

Q5: Do you accept sample order?

A:Yes, sample order is welcome.

Q6: How can I get the quotation?

A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
TL050JYXP02-00 Tianma 5.0" 720×1280
N156BGE-PA1 Innolux 15.6" 1366×768
T430HVN01.0 CELL AUO 43" 1920×1080
T320HVN05.6 CELL AUO 31.5" 1920×1080
T320HVN05.3 CELL AUO 31.5" 1920×1080
T195XVN01.0 CELL AUO 19.5" 1366×768
BP080WX7-101 BOE 8.0" 800×1280
CLAF055WB41 TXX CPT 5.5" 720×1280
CLAF047LB41 TXX CPT 4.7" 540×960

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
